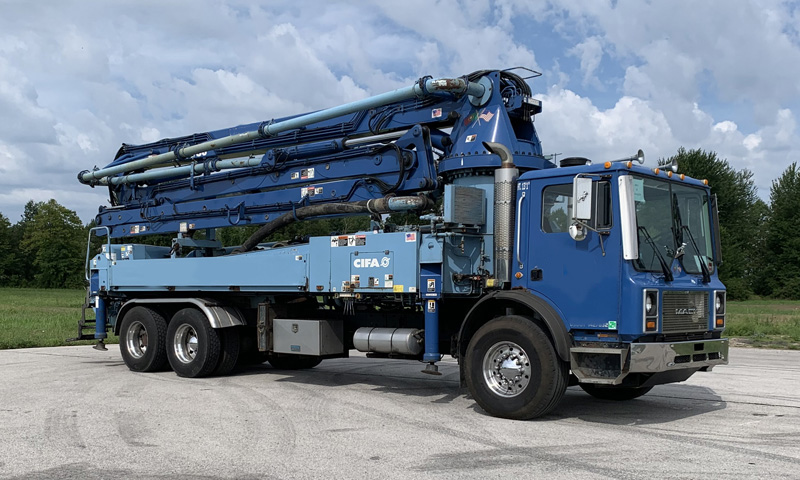

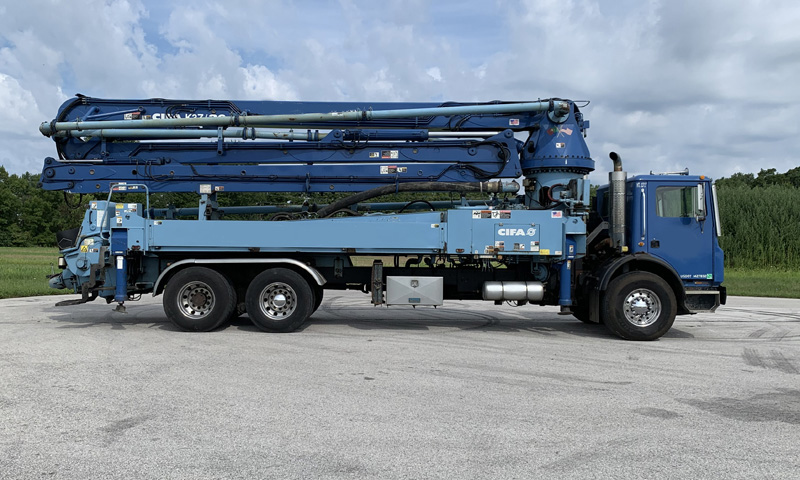

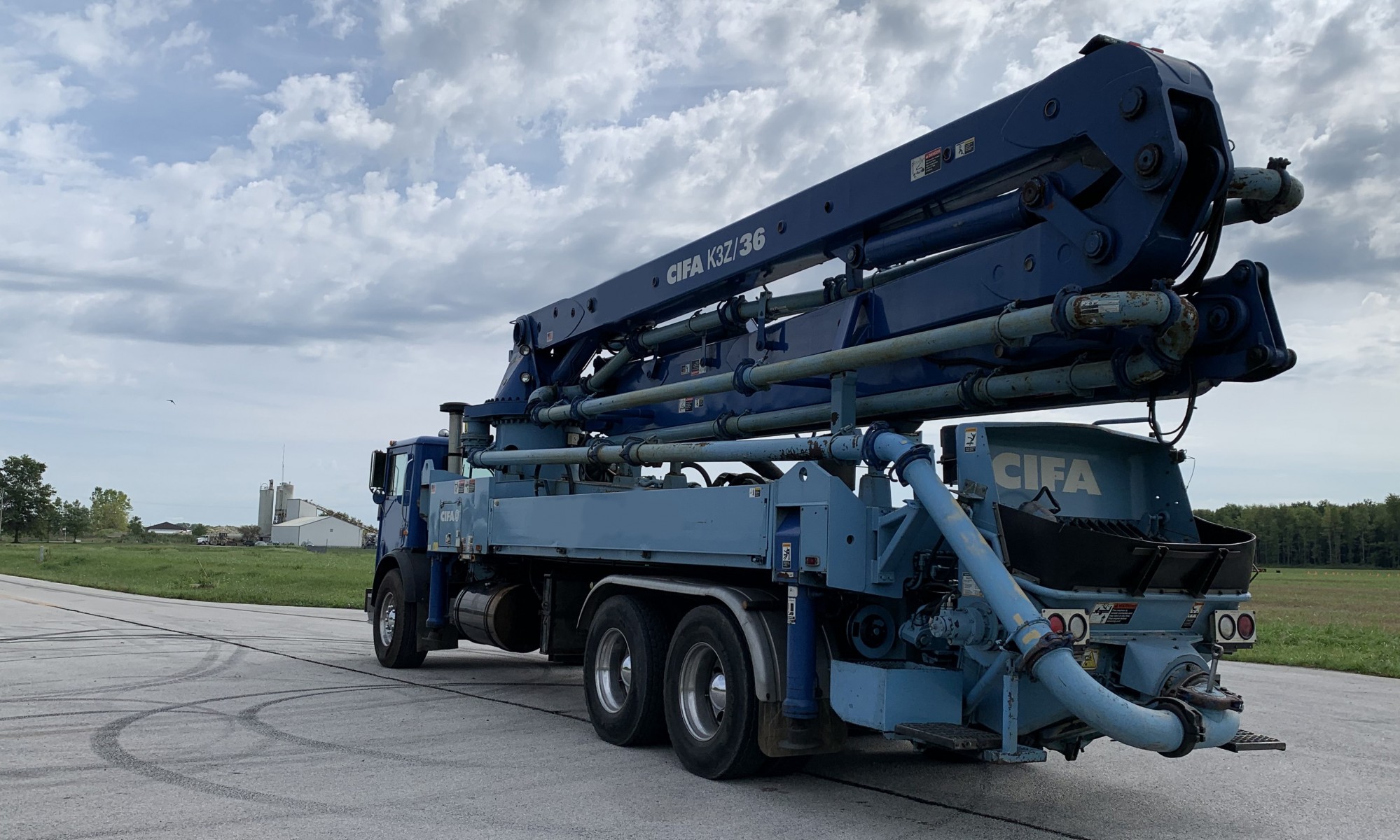

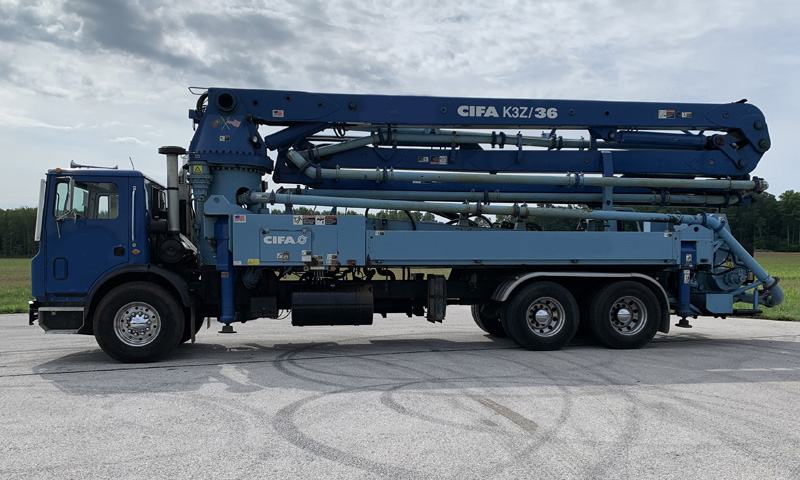

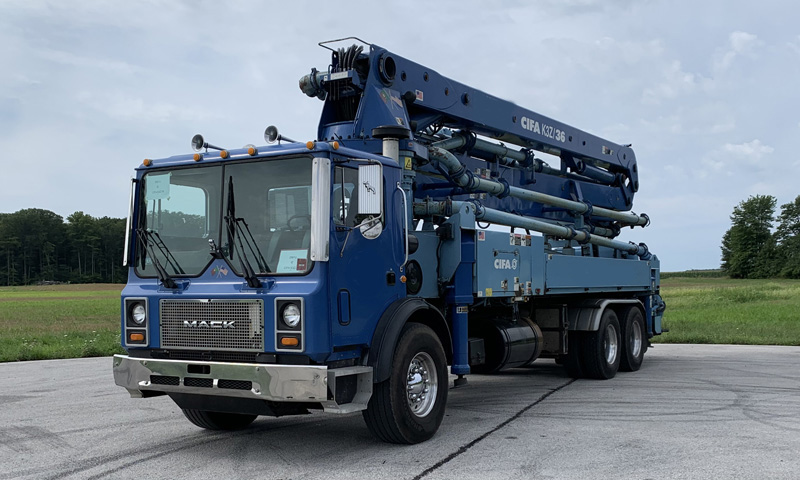

1- CIFA 36m (2002/2001)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
General Pump Information

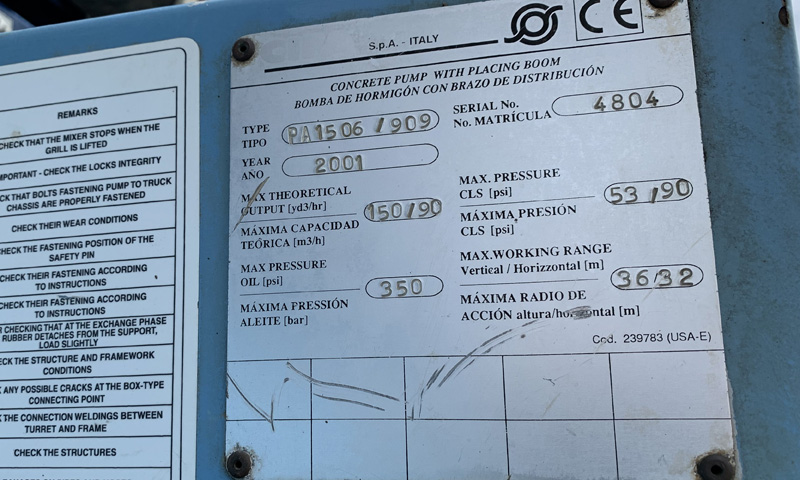

| Pump Make | CIFA K36L |
Pump year | 2001 |

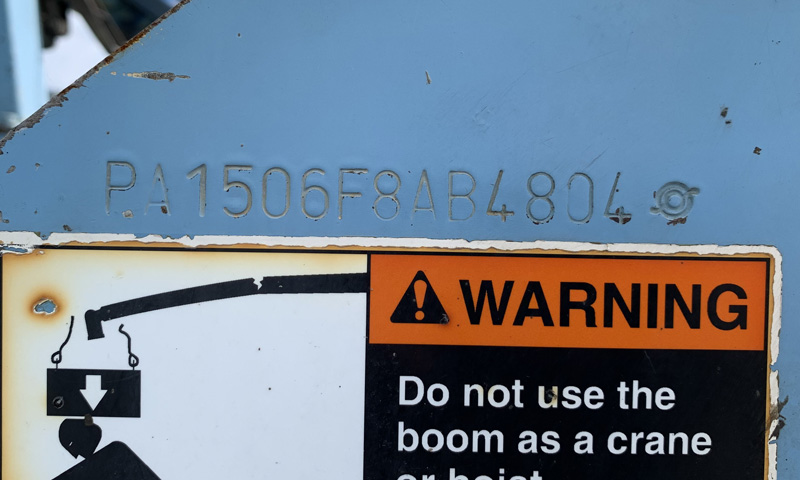

Pump s/n | 4804 |

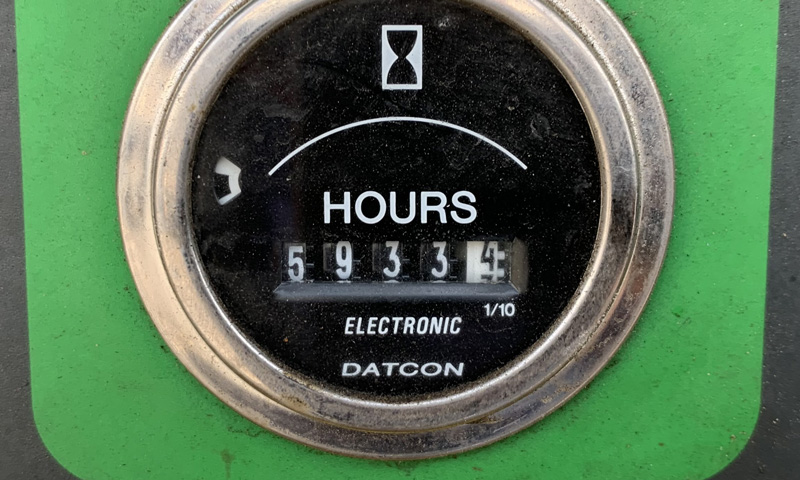

Pump hours | 5933 |
Valve type | S-tube |

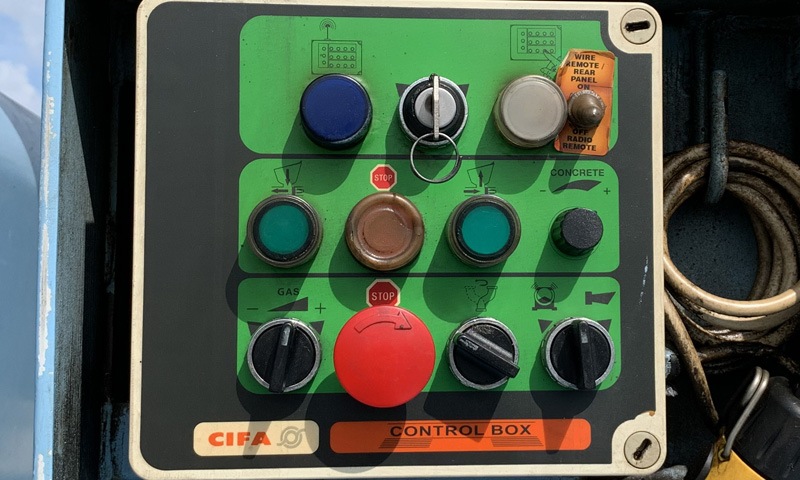

Remote | Scanreco proportional radio w/ on/off b-u |
Pipe line | 5" |
Pipe condition | Good |

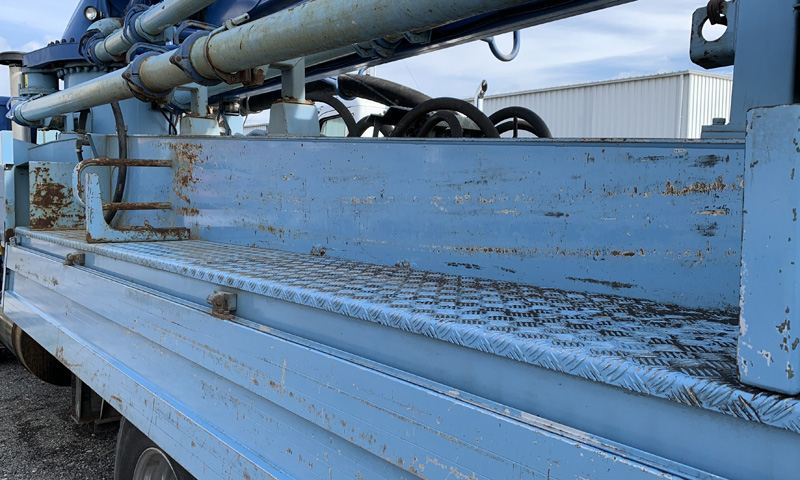

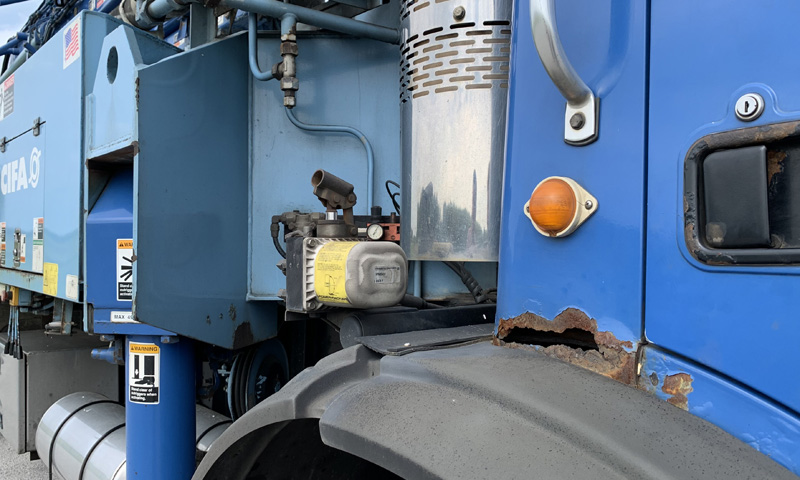

Paint | Good Blue, body has some rust |
Last boom inspection | Current |

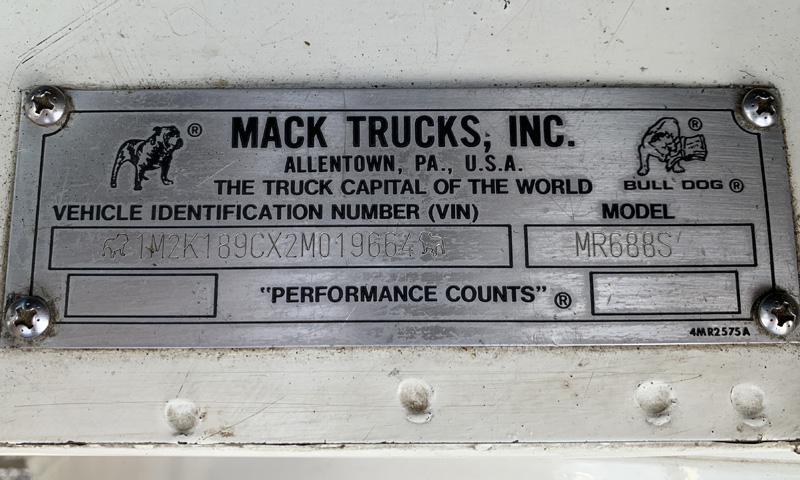

Truck VIN | 1M2K189CX2M019664 |

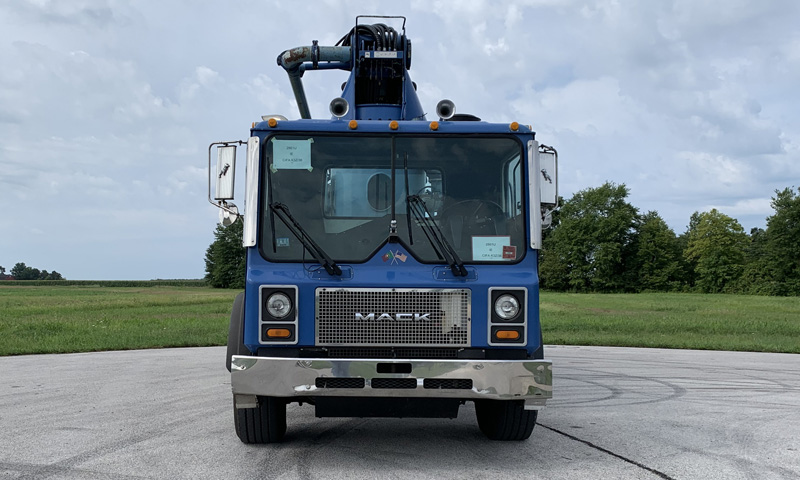

Truck make | Mack |
Truck model | MR |
Truck year | 2002 |

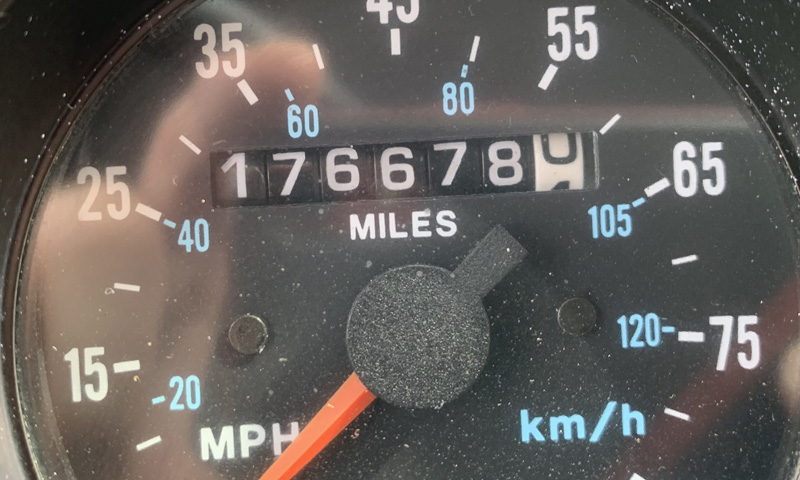

Miles | 176,678 |

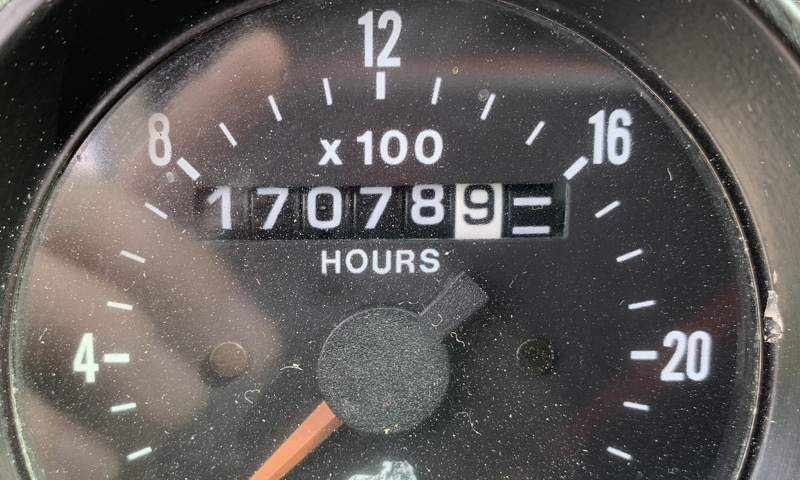

Engine make / HP | 17,078 hours |

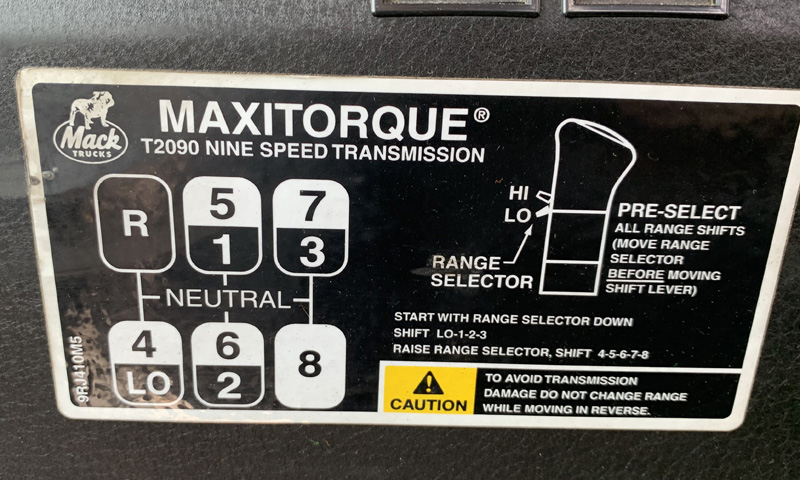

Transmission | Maxitorque T2090 |
Pump Specifications
Maximum output {fully variable} | 196 cu yds/hr |
Concrete cylinder {hard chromed} | 9" x 79" |
Strokes per minute | 36 |
Concrete pressure {rod side} | 700 PSI |
Concrete pressure {head side} | PSI |
Hopper capacity | 27 cu/ft |

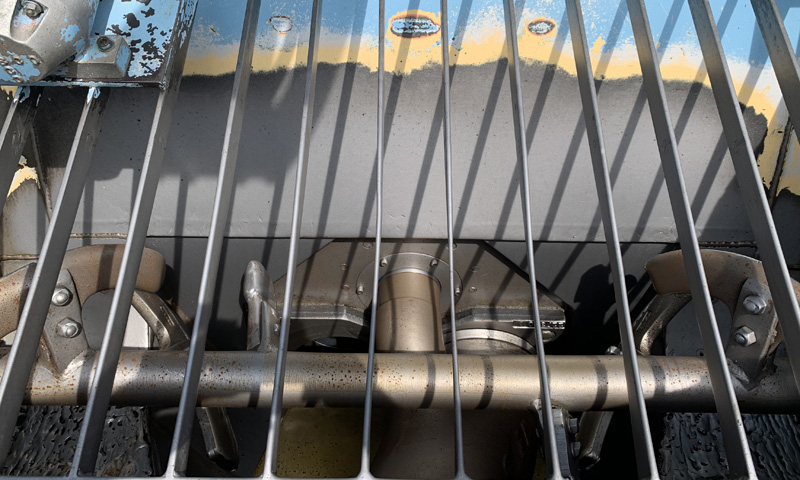

S-tube | 9" x 7" {220 mm x 180 mm} |
Hydraulic pump | Rexroth double main pumps |
Hydraulic system | Open loop |
Max. aggregate size | 2 1/2" {65mm} |
Standard Features
- One cable remote control and one radio remote control
- Clean-up water system with 120 gallon tank
- Diesel fuel saddle tank 80 gallon
- Hopper vibrator
- Automatic lubrication system {hopper only}
- Boom tip hose, single ended, straight 5"
- Inspection visits welcome, pump water with snorkel
- **Customer is responsible to check any/ all specifications
- **This is a used pump and may not contain all standard items listed
