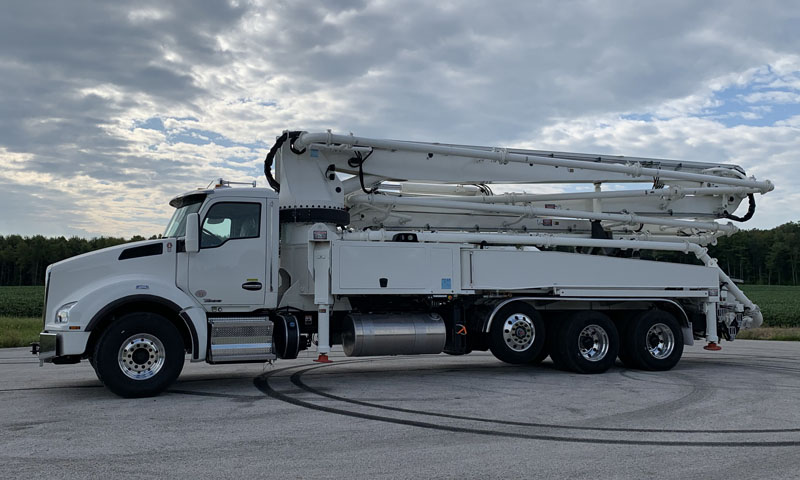

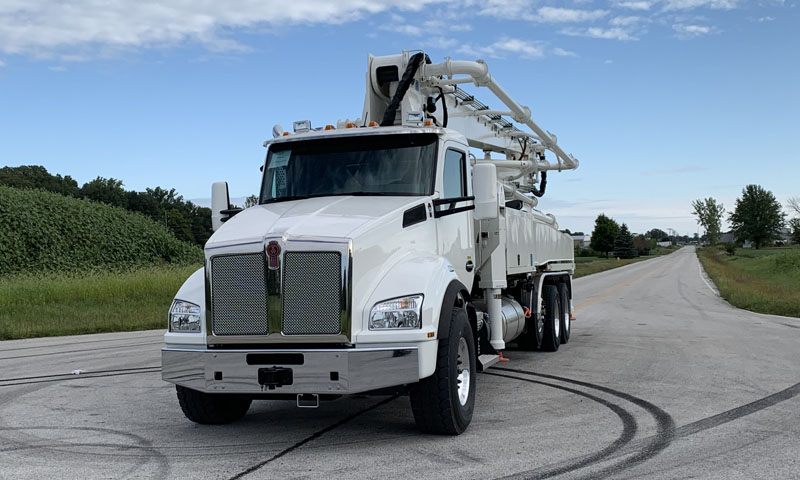

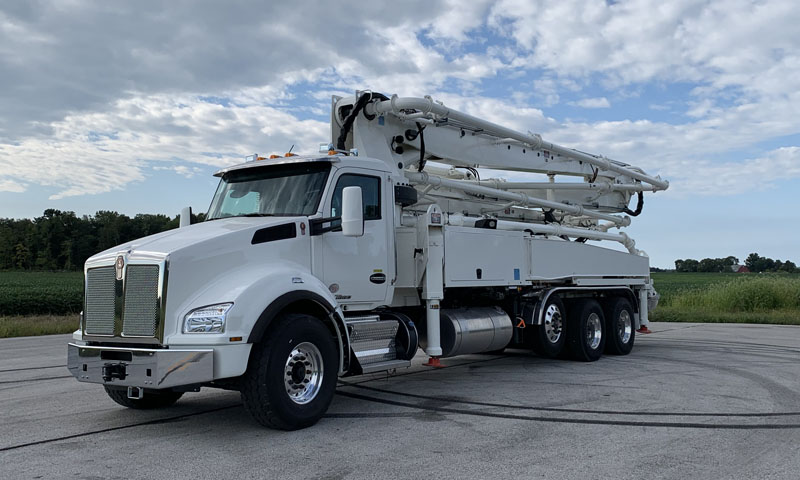

CIFA 38M (Z4) (2020/2020)
Pump Make | CIFA 38 |
Pump year | 2020 new |
Pump s/n | more coming in |
Pump hours | 0 (new unit, testing only) |
Valve type | S-tube |

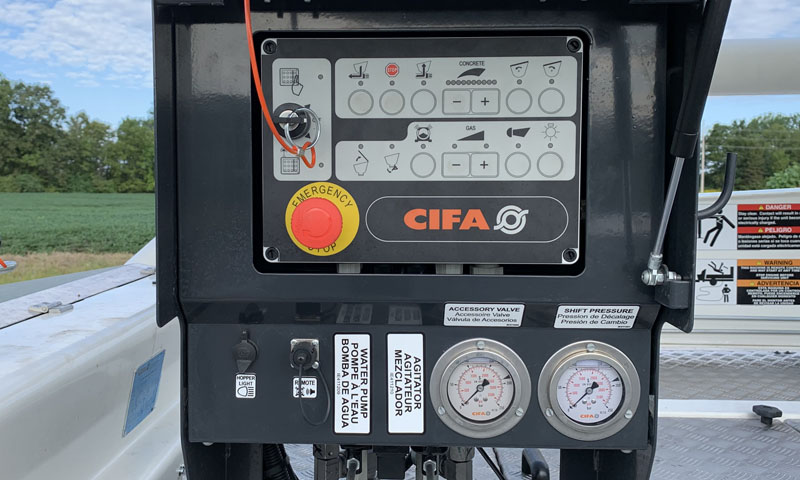

Remote | HBC, (2) handsets, proportional radio w/cord back-up |
Pipe line | 5" Metric |
Pipe condition | New Twin Wall, Long Life Valme |
Paint | White/ New |
Last boom inspection | New Unit |
Truck vin | |

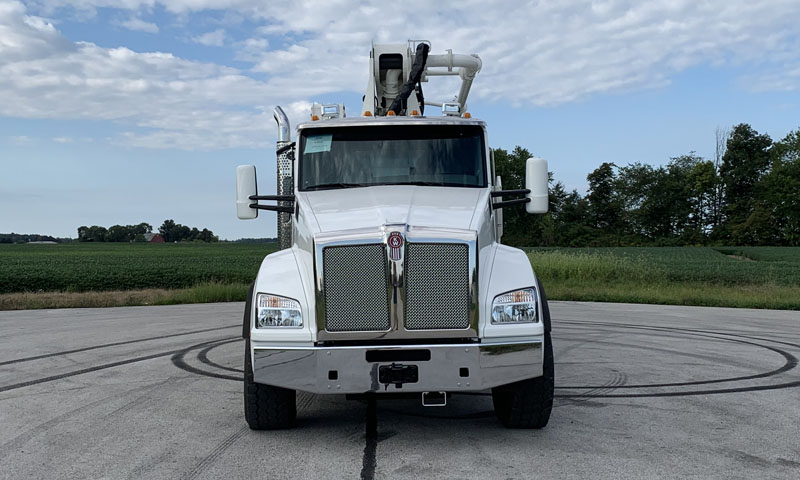

Truck make | KENWORTH |
Truck model | T880 6x4 Tandem w/lift axle |
Truck year | 2019 new |
Miles | 600 (new unit) |
Engine make / HP | Cummins 450HP |
Transmission | Allison 6 speed auto 4500 series |
Pump Specs:
Maximum output {fully variable} | 215 cu yds/hr |
Concrete cylinder {hard chromed} | 9" |
Strokes per minute | 31 |
Concrete pressure {rod side} | 1,160 PSI |
Concrete pressure {head side} | PSI |

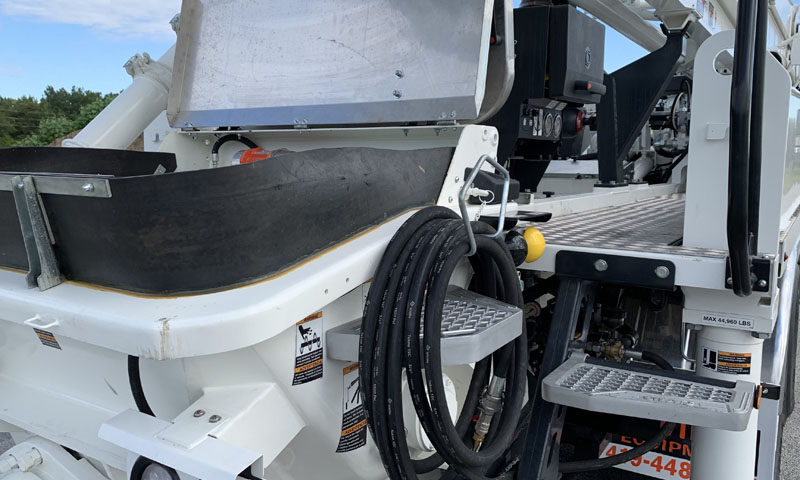

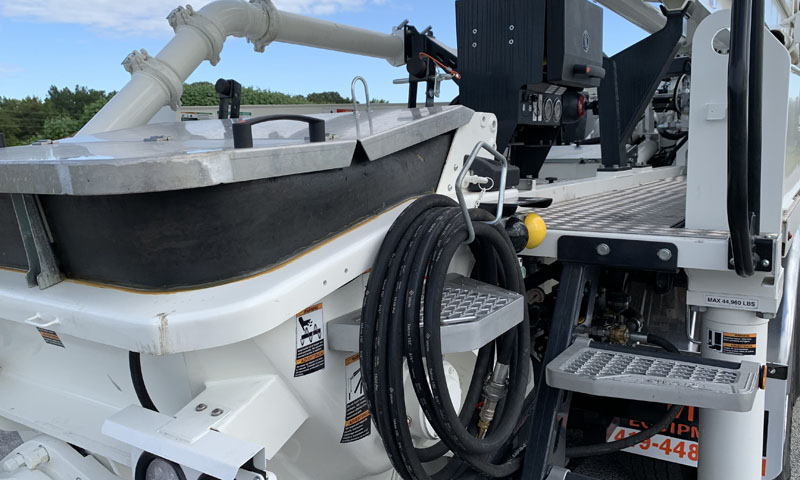

Hopper capacity | 21 cu/ft |
S-tube | 9" x 7" {220 mm x 180 mm}, rear housing |

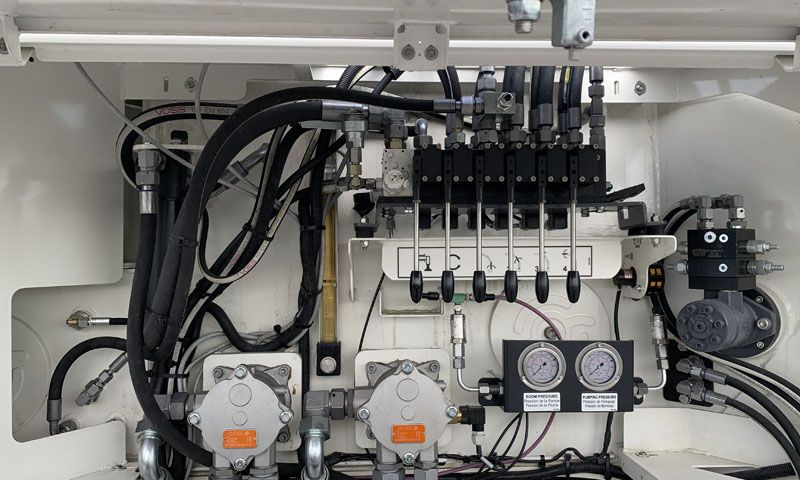

Hydraulic pump | Rexroth |
Hydraulic system | Closed loop |
Max. aggregate size | 2 1/2" {65mm} |

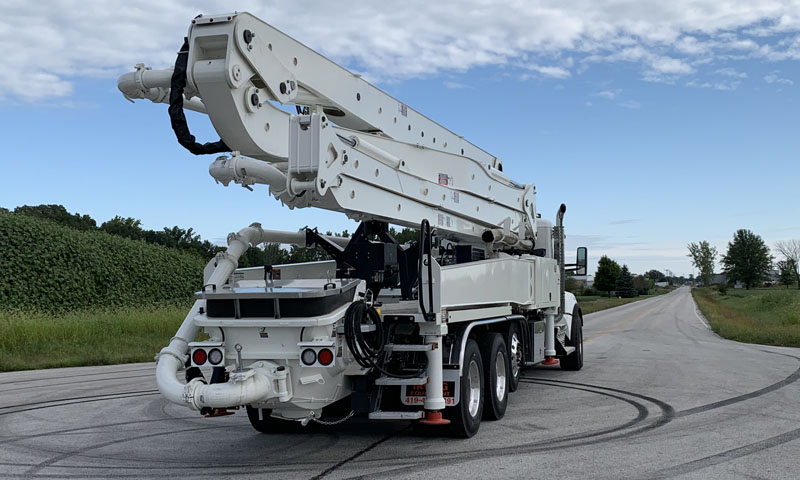

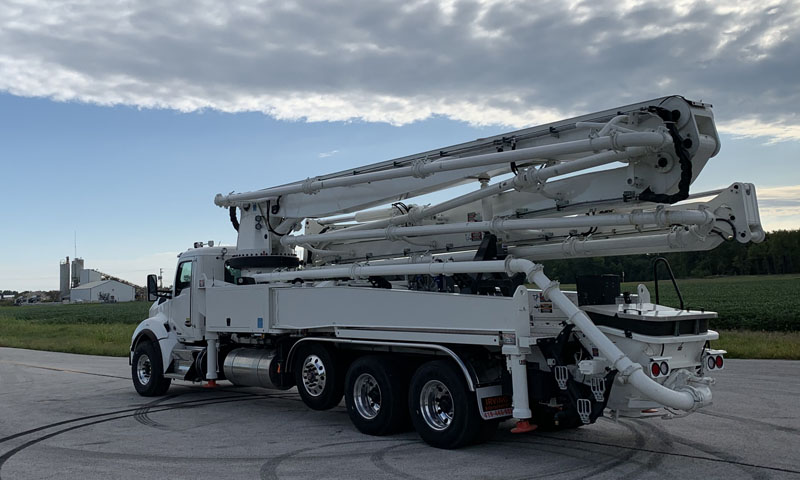

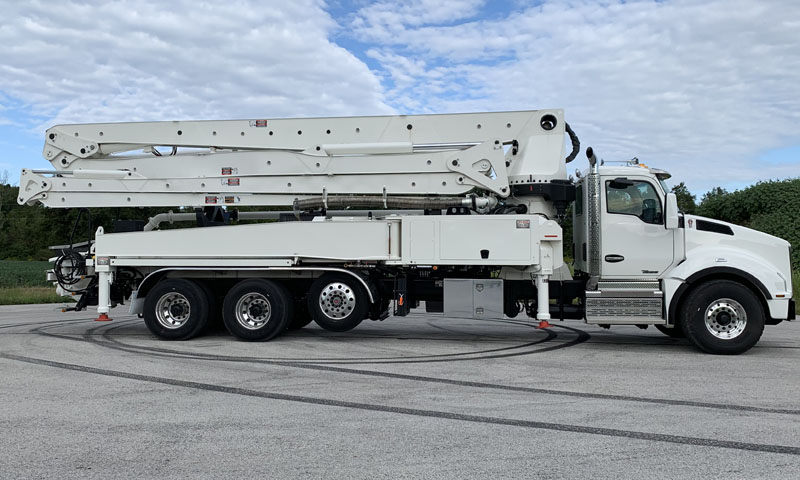

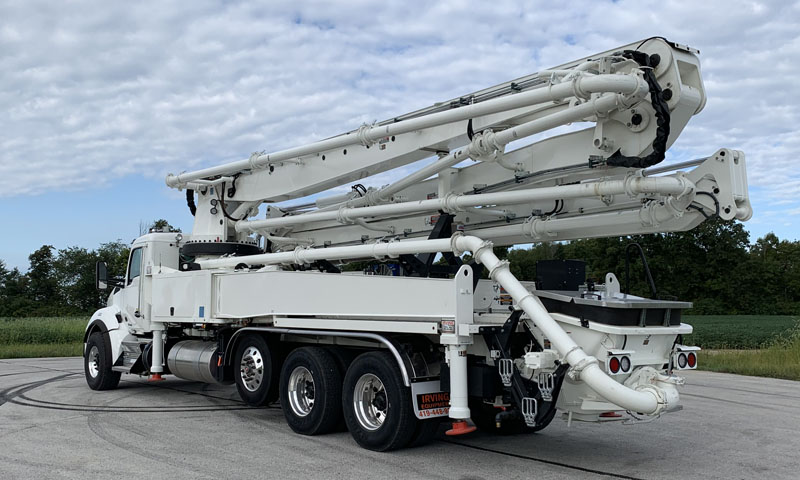

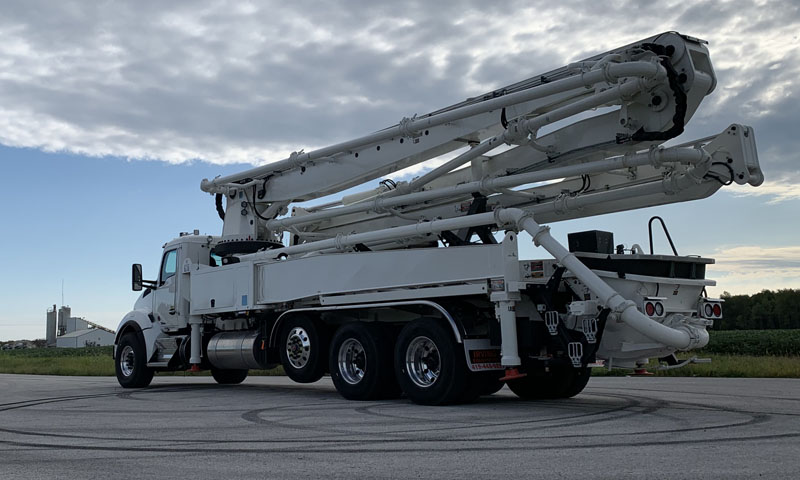

Boom Specifications:
4 section Z-fold {vert. reach} | 123'-5" {37.64 M} |
Maximum horizontal reach | 109-' 7" {33.43 M} |
Reach from front of truck |
|
Unfolding height | 29'-9" {9.11 M} |
Rotation | 540 degree |
Section articulation | 90 / 180 / 240 / 245 / |
Proportional Boom | YES, corded back-up |
Delivery line | 5"M |
Standard Features
- Hopper vibrator
- Automatic lubrication system {hopper only}
- Boom tip hose
- Inspection visits welcome, pump water with snorkel
- **Customer is responsible to check any/ all specifications
For more information contact:
Mark Irving 419-934-1682 mirving@irvingequipment.net
