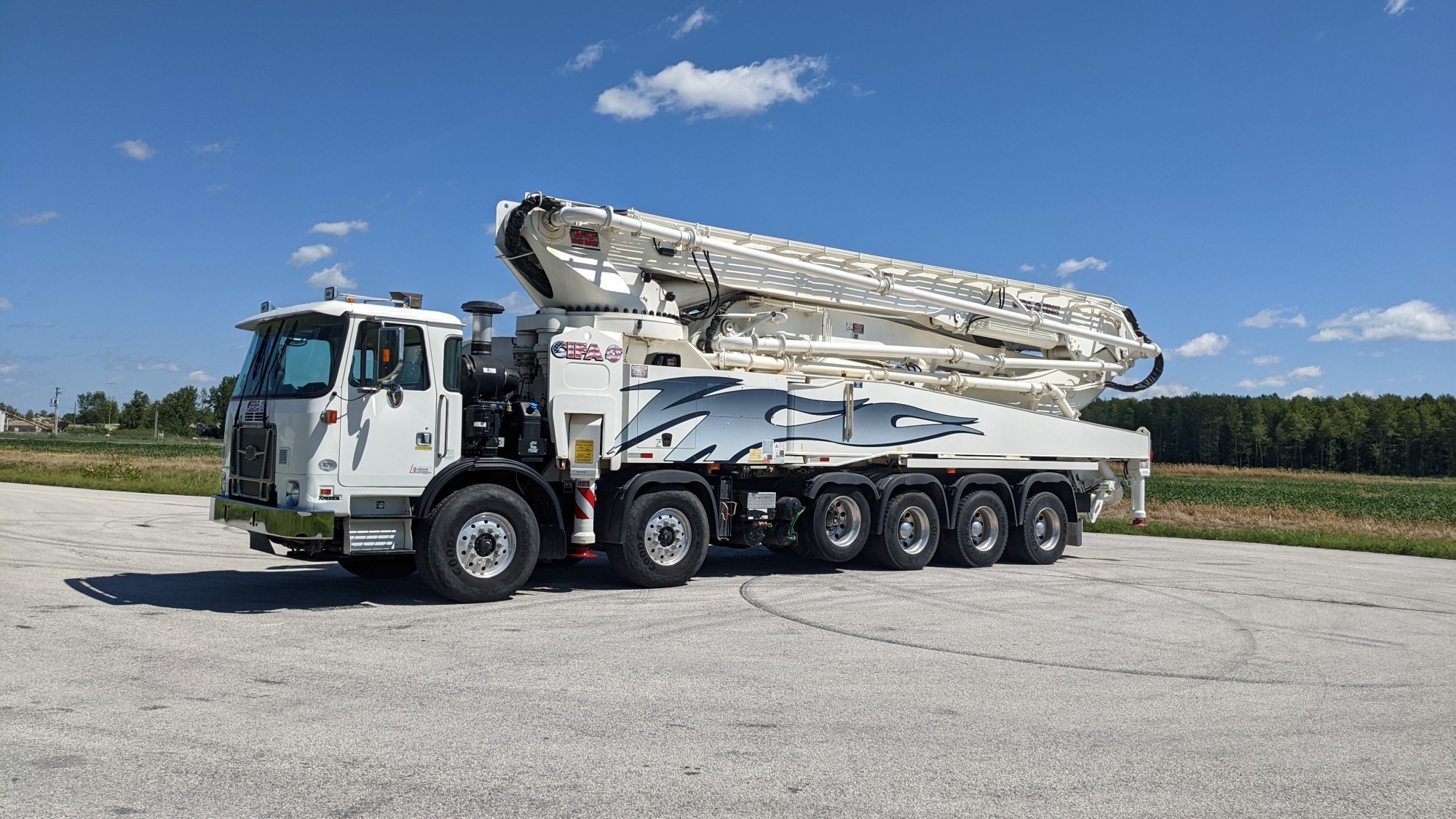

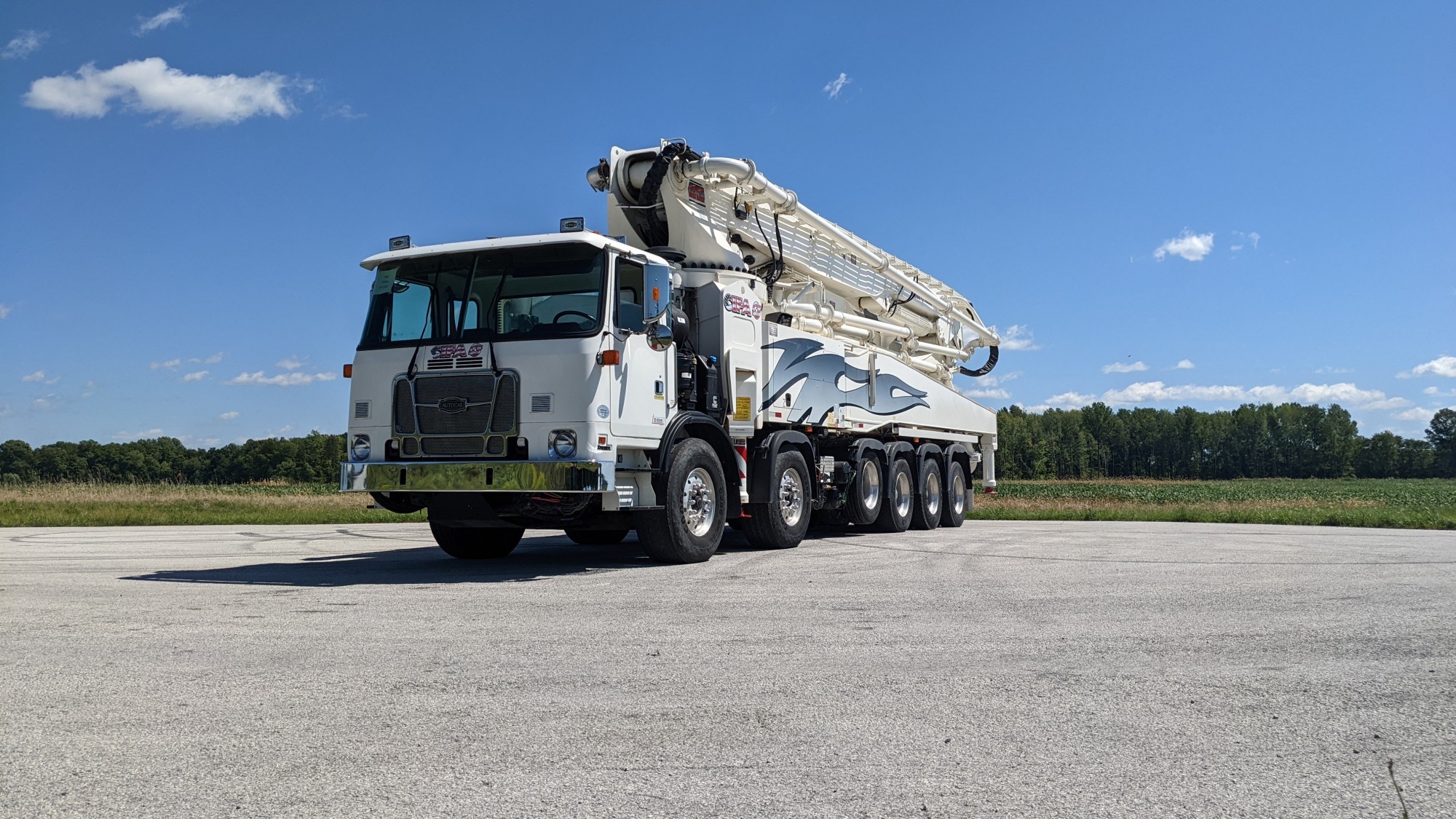

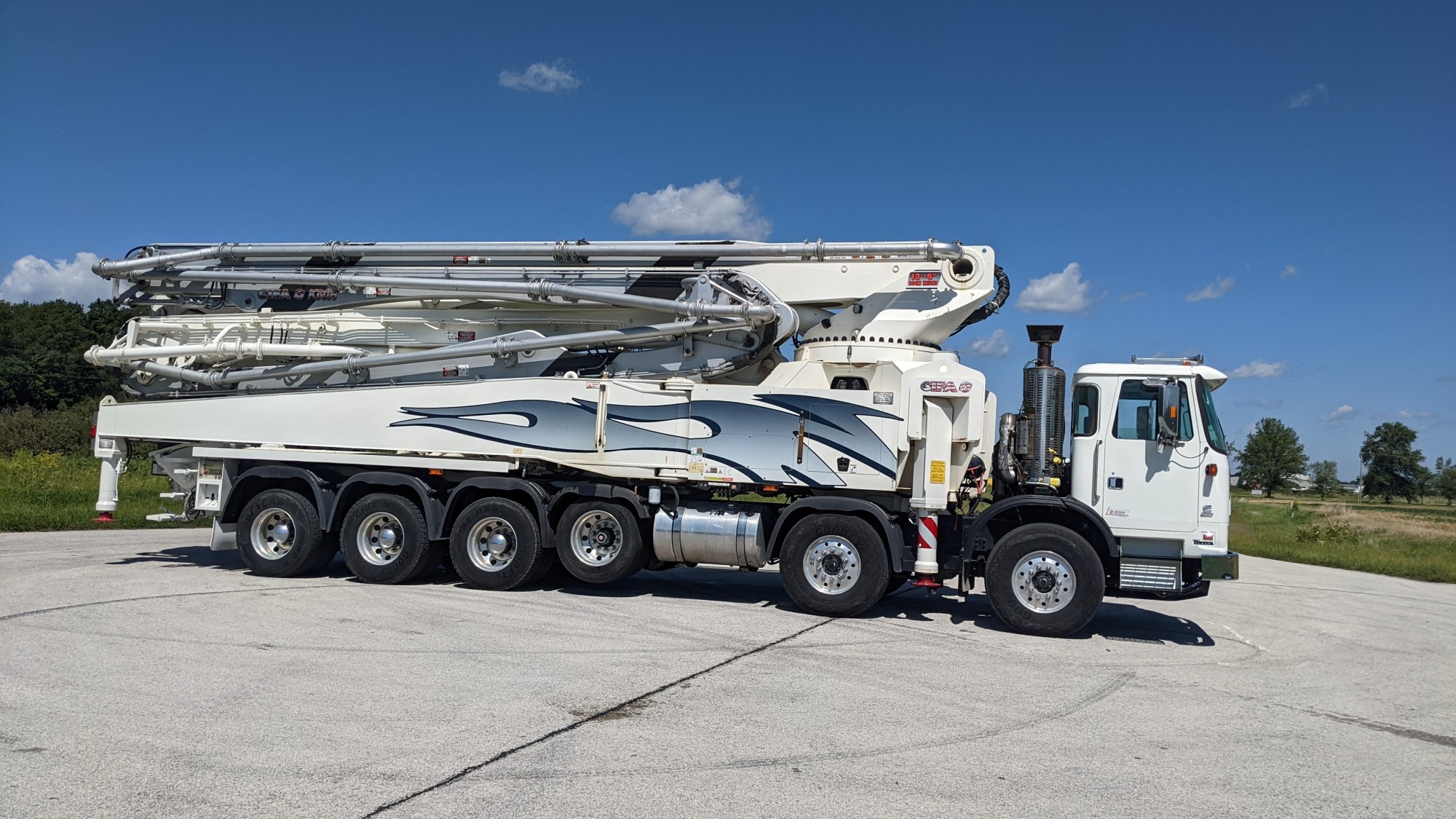

1- CIFA 60m (2017/2017)

Pump year

2017

Pump s/n

19260

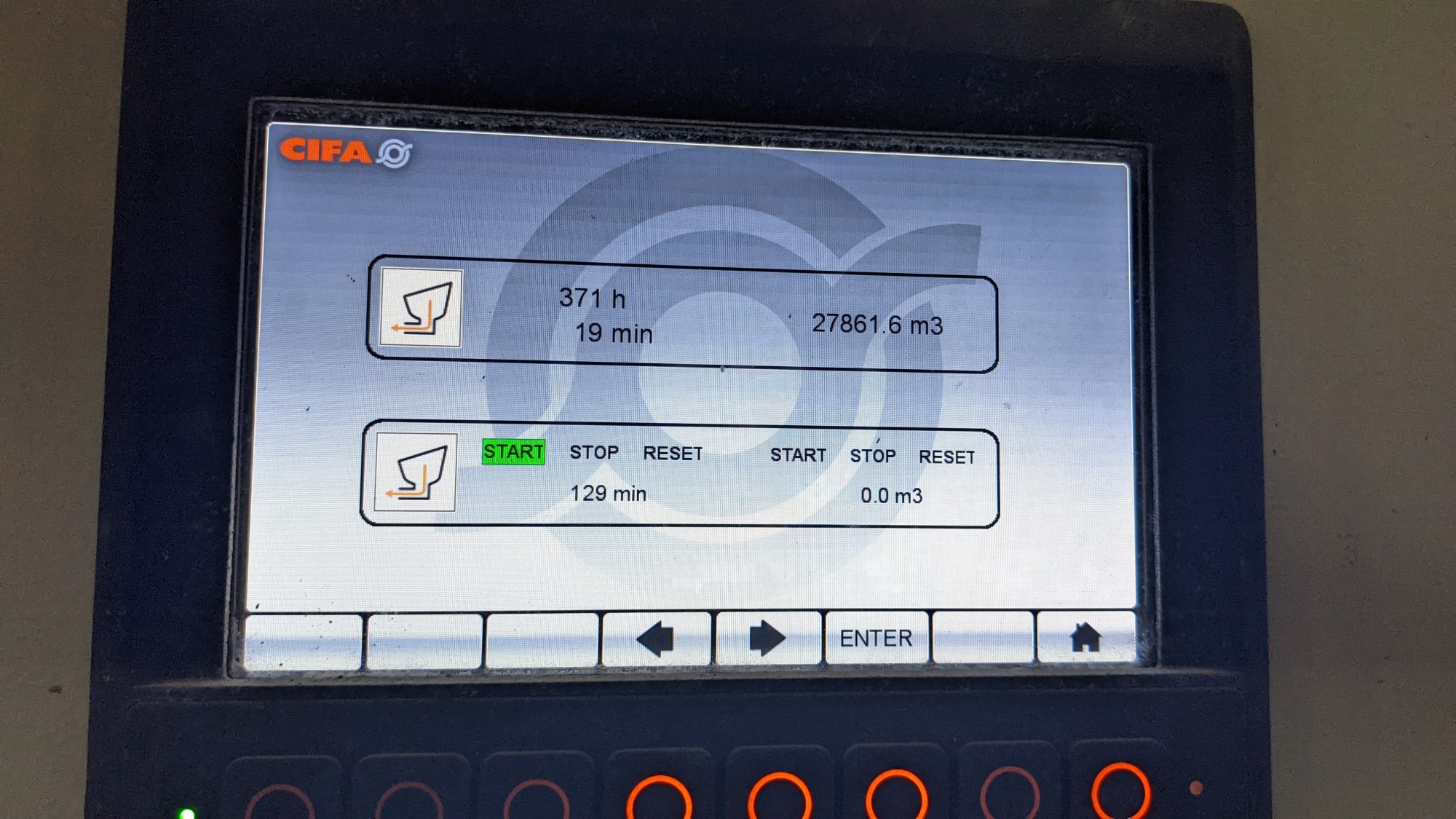

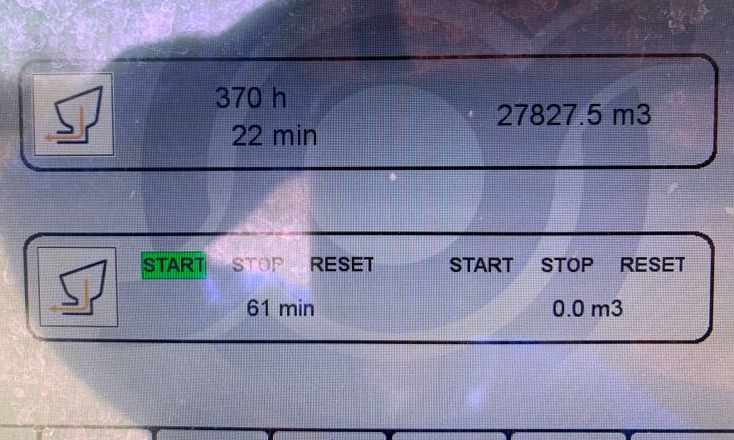

Pump hours

370

Valve type

S-tube

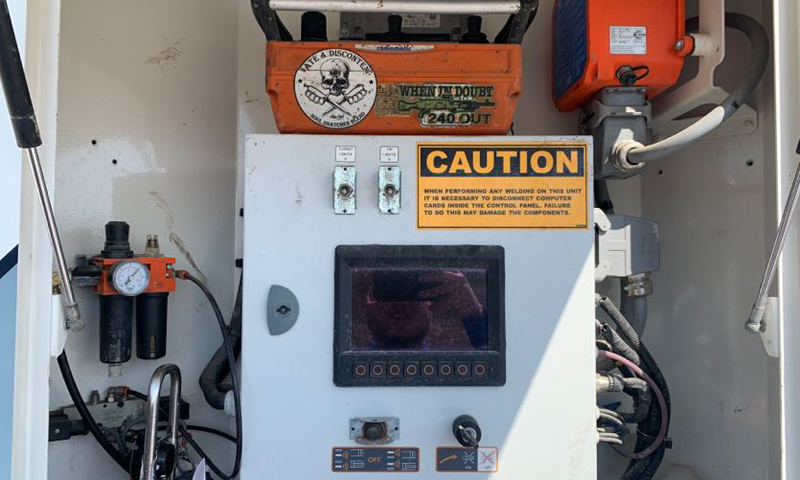

Remote

HBC propor radio, 2nd unit as cord propor back-up

Pipe line

5" Metric 100%

Pipe condition

85%

Paint

Good White

Last boom inspection

Current*

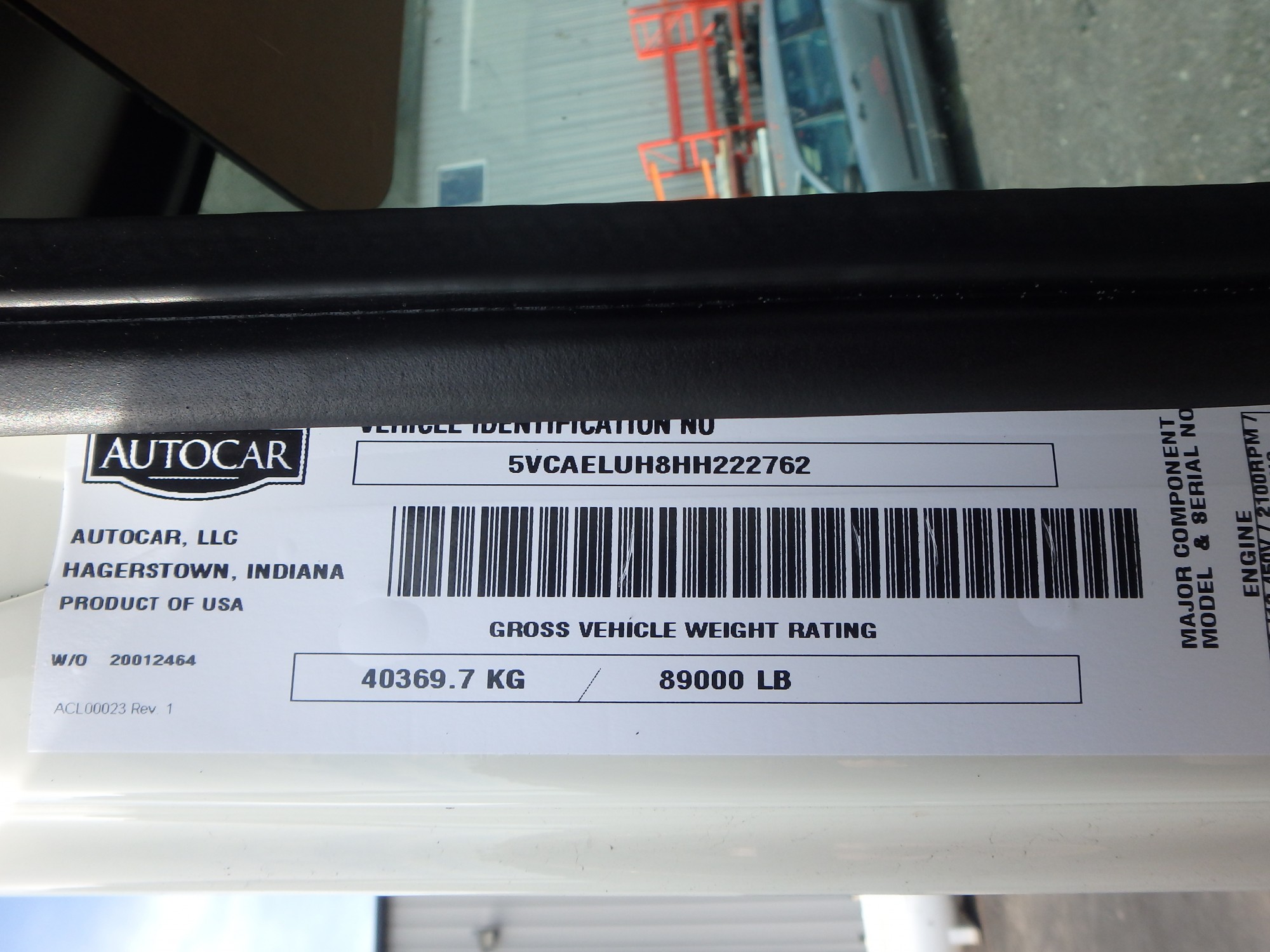

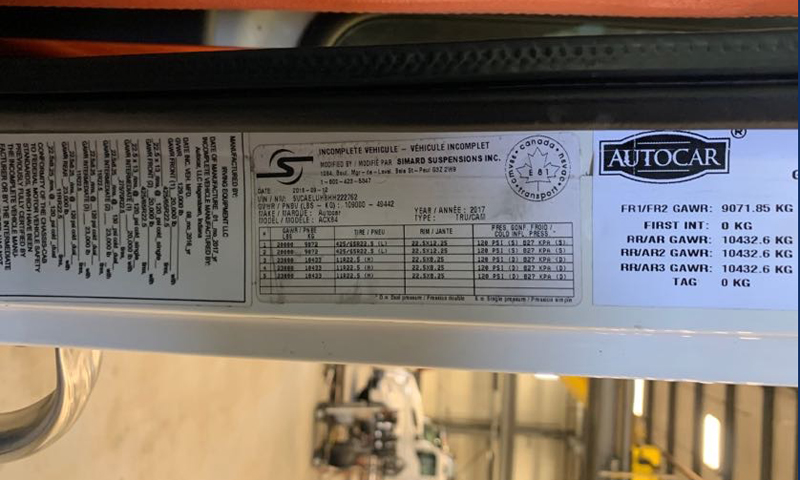

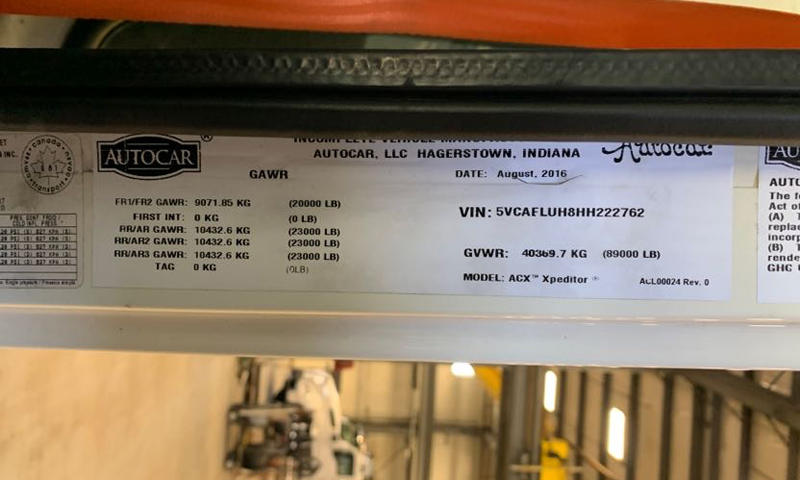

Truck VIN

5VCAELUH8HH222762

Truck make

Autocar

Truck model

ACX Expeditor

Truck year

2017

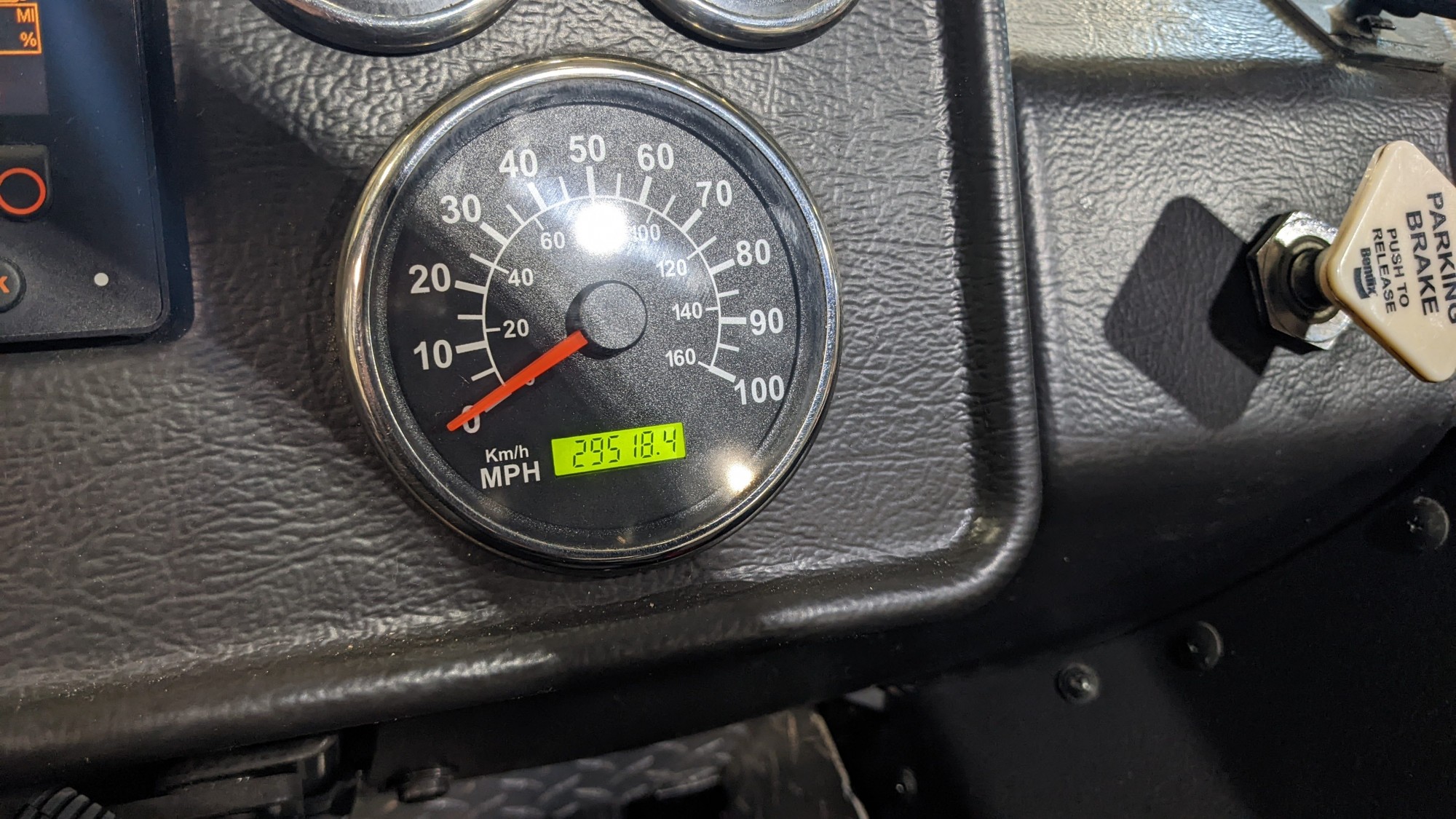

Miles

29,511

Engine make / HP

Cummins 450HP

Transmission

Alisson 6 speed

Maximum output {fully variable}

240 cu yds/hr

Concrete cylinder {hard chromed}

10" x 79"

Strokes per minute

27

Concrete pressure {rod side}

1,210 PSI

Concrete pressure {head side}

 PSI

Hopper capacity

27 cu/ft

S-tube

9" x 7" {220 mm x 180 mm}

Hydraulic pump

Rexroth double main

Hydraulic system

Closed loop (HP)

Max. aggregate size

2 1/2" {65mm}

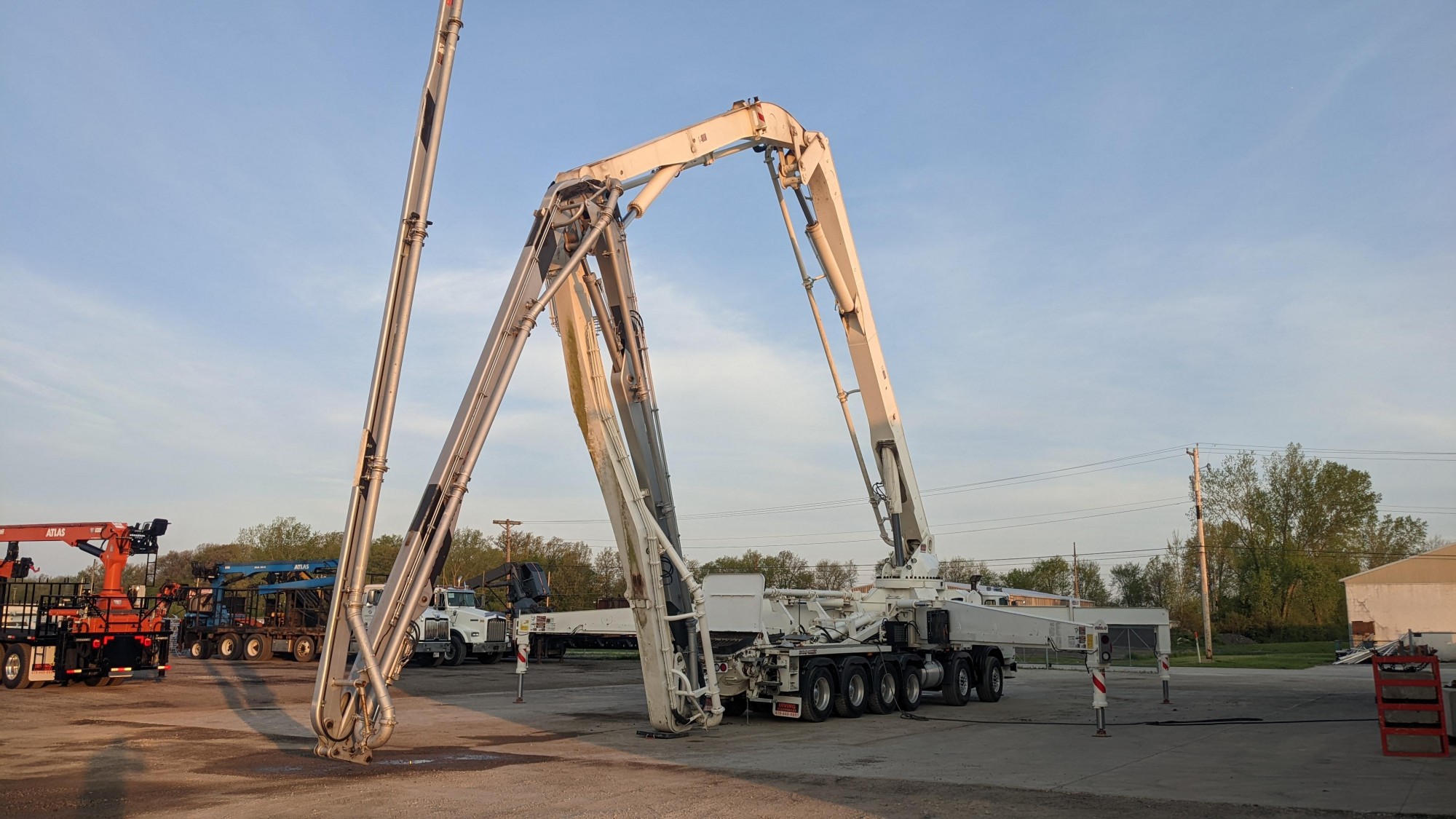

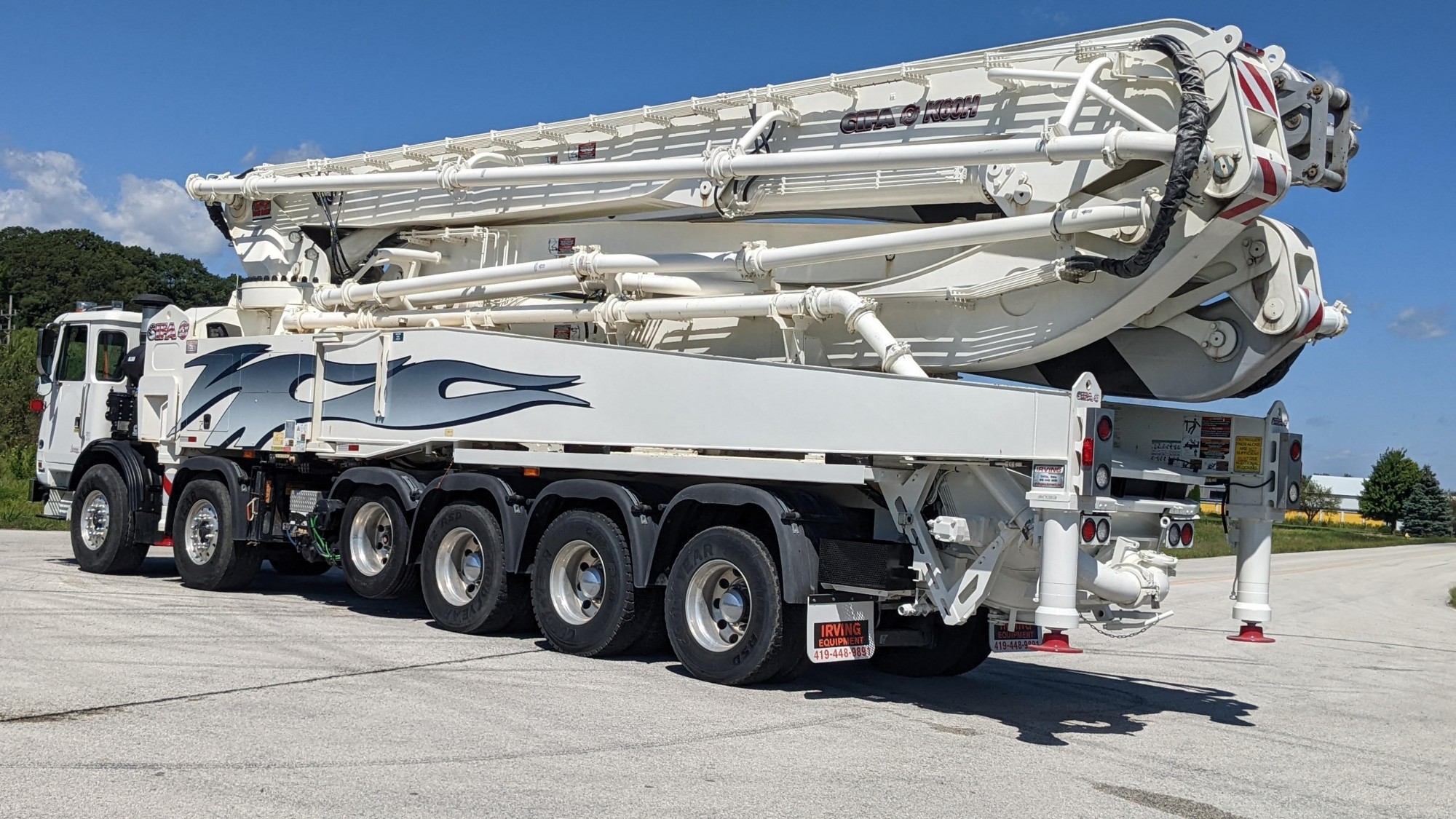

6 section Z-R fold {vert. reach}

193'-6" {59.1 M}

Maximum horizontal reach

177'-6" {54.1 M}

Reach from front of truck

167'-6"

Unfolding height

46'-6" {14.2 M}

Rotation

370 degree

Section articulation

90 / 180 / 180 / 180 / 180/ 210

Proportional Boom

YES, & corded back-up

Delivery line

5"M {125mm} double wall
