In-Stock Equipment

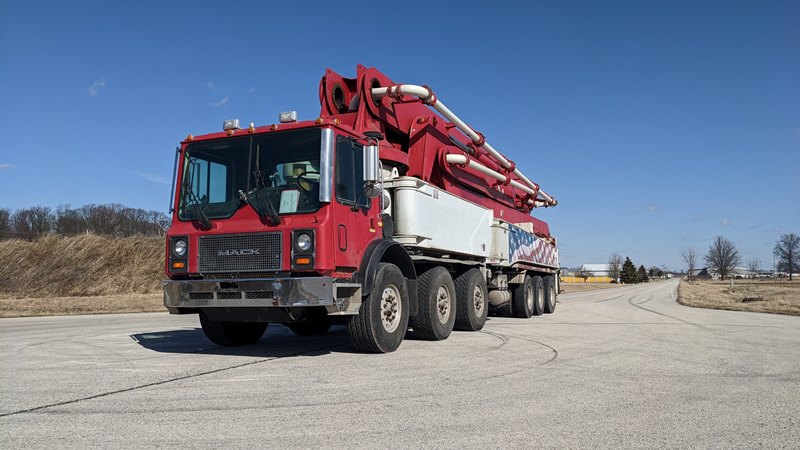

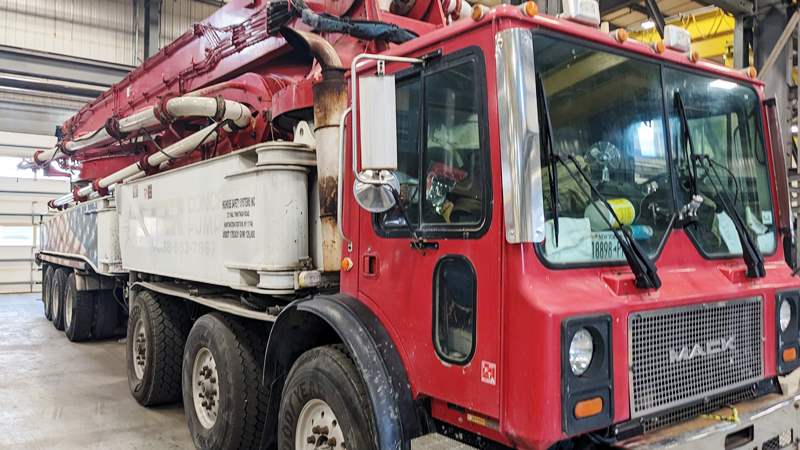

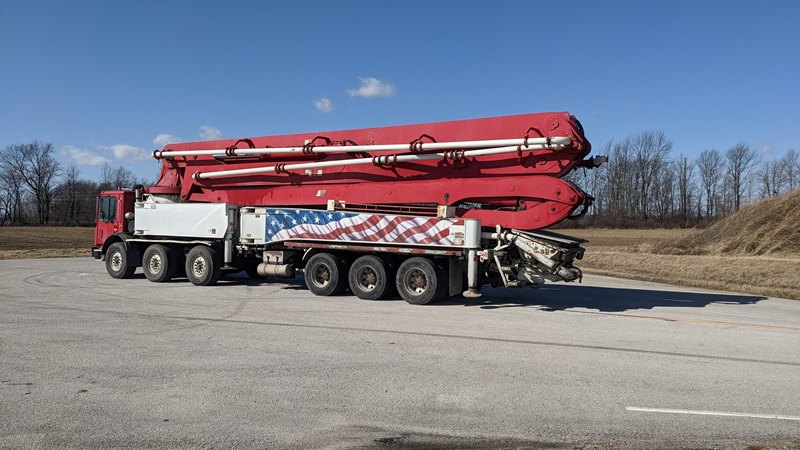

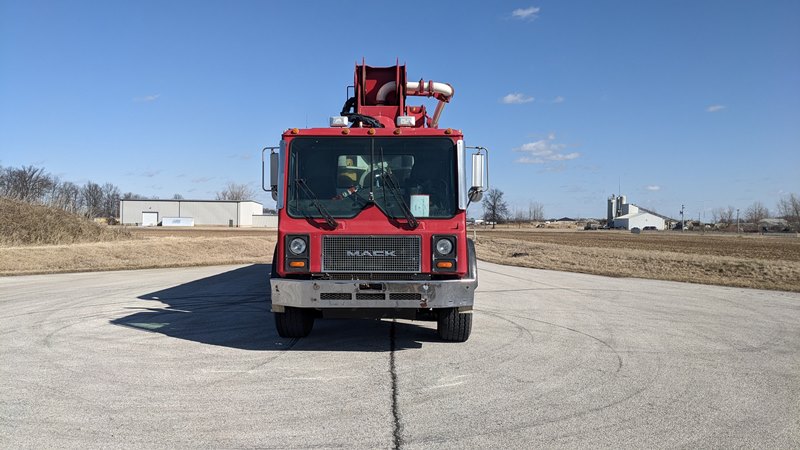

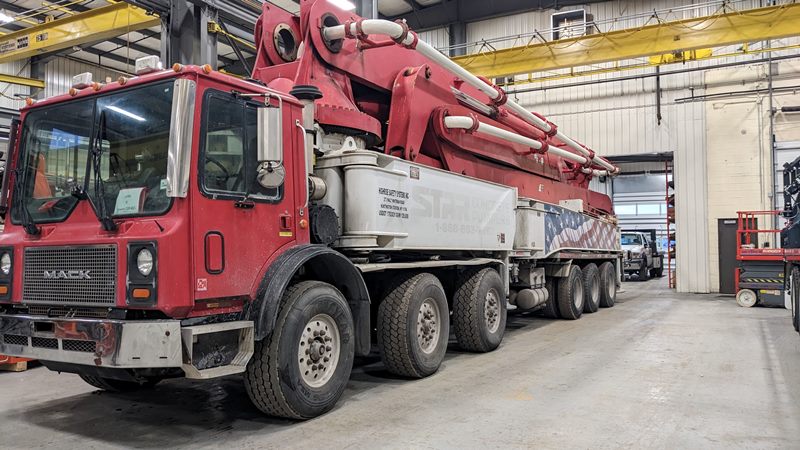

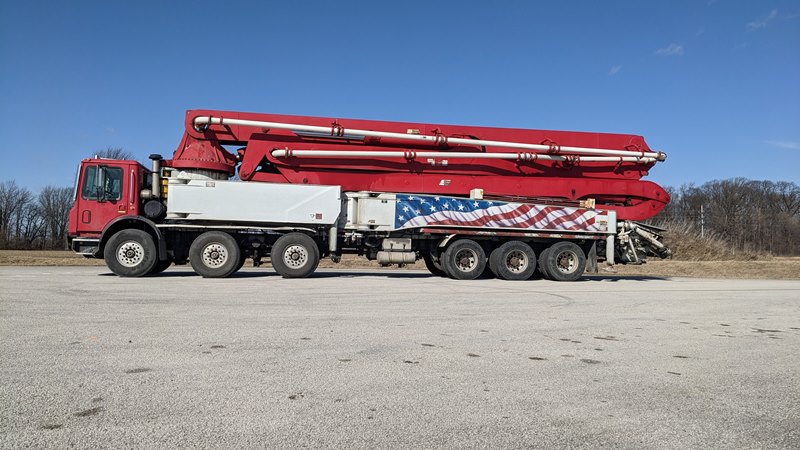

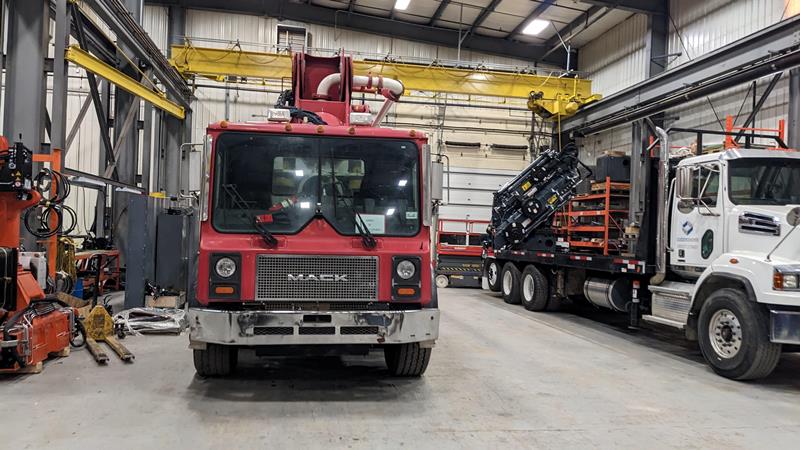

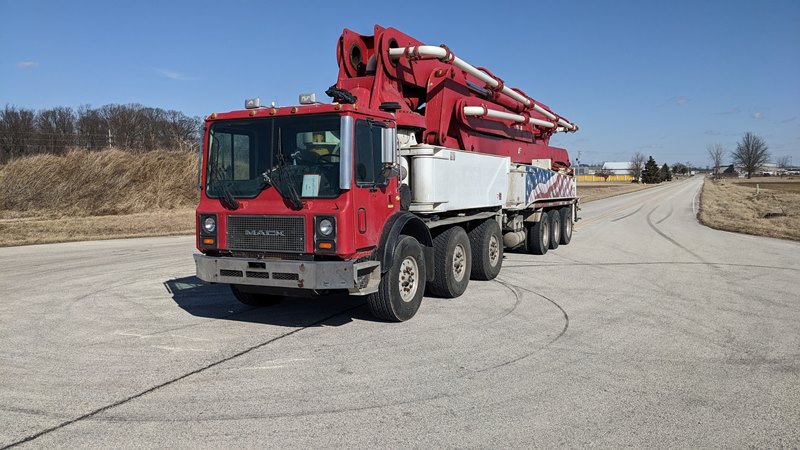

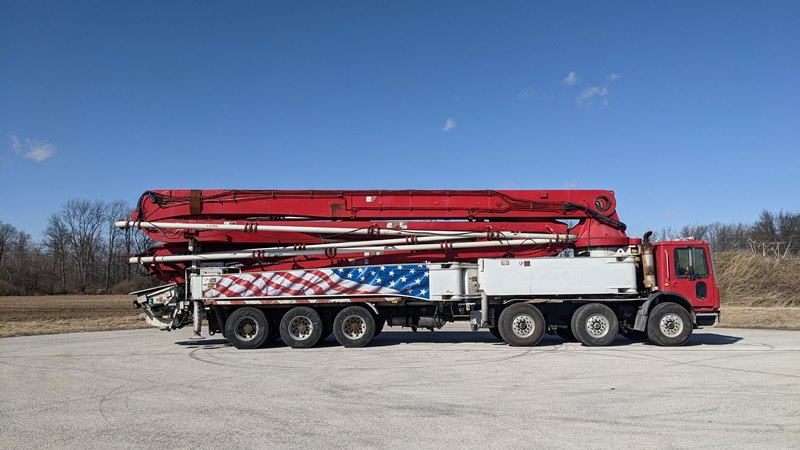

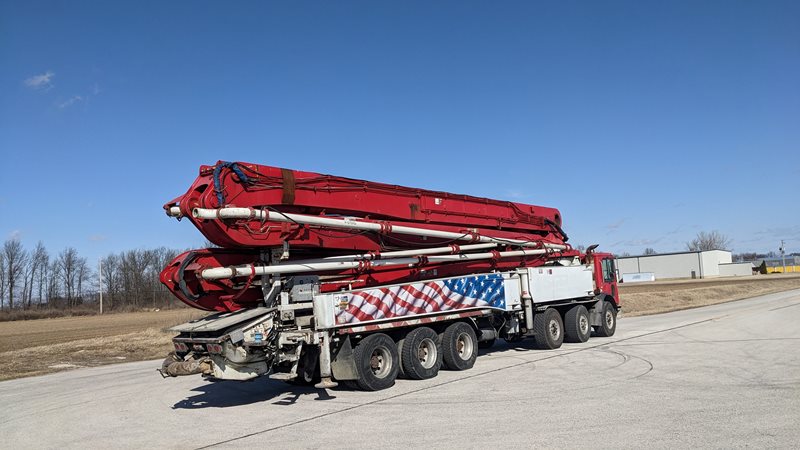

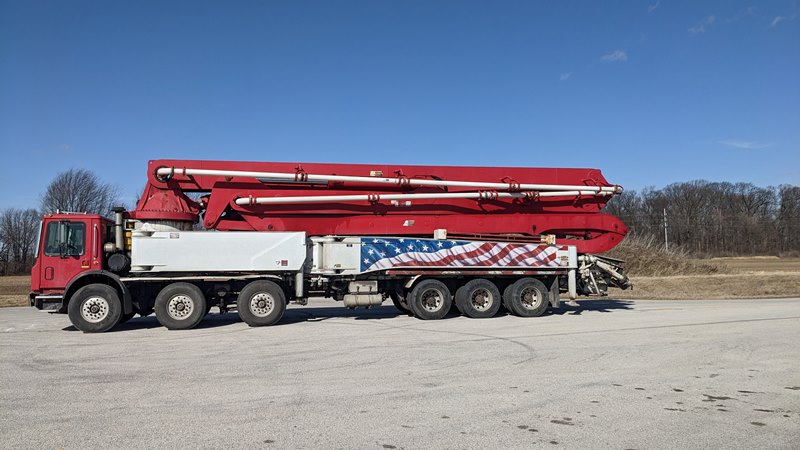

1-Concord 60m (2003/2003)


Pump MakeConcord 60

Pump year

2003

Pump s/n

60Z50322501

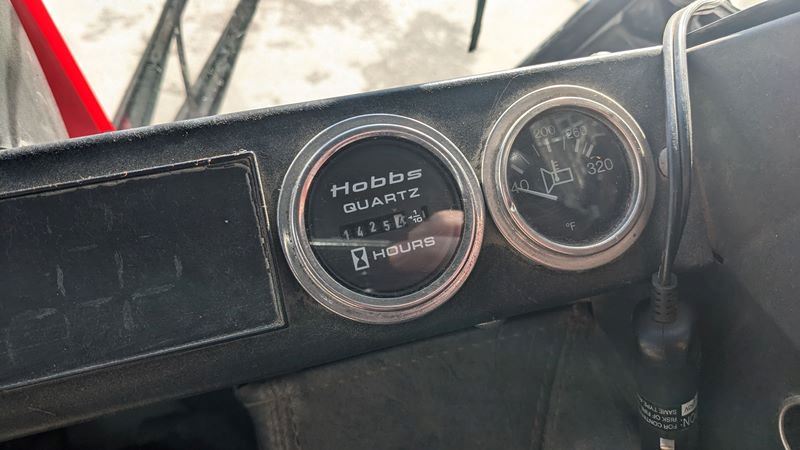

Pump hours

3465

Valve type

S-tube

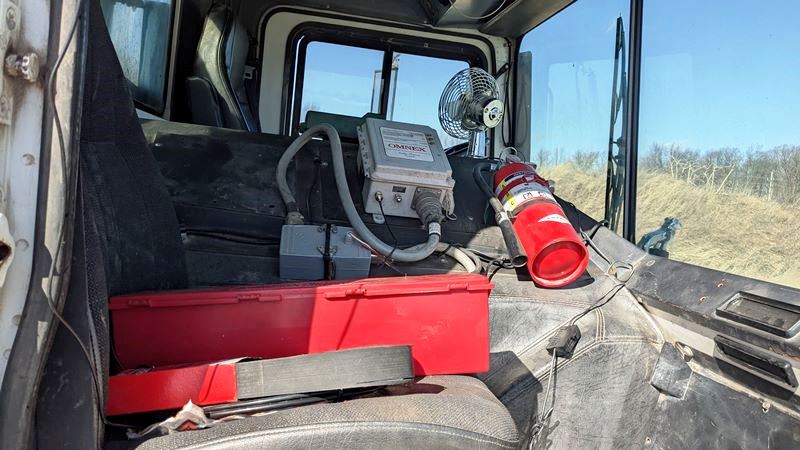

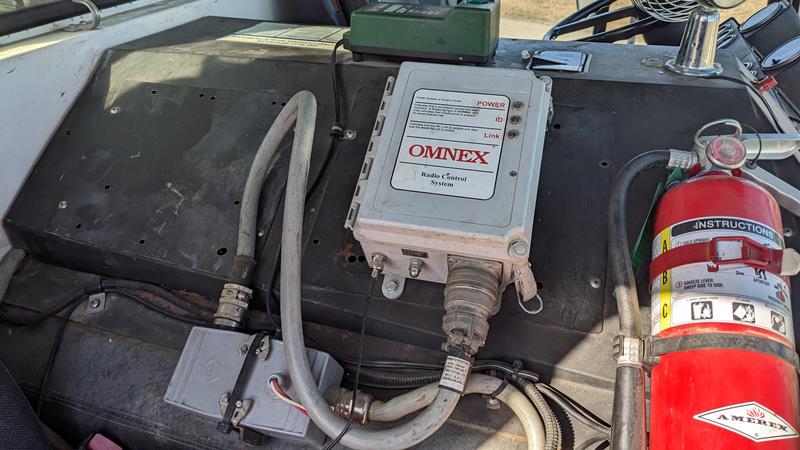

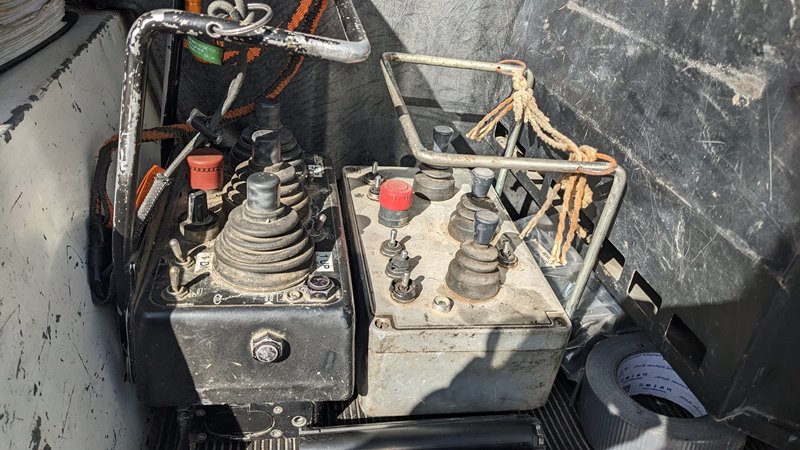

Remote

proportional radio with cord back-up

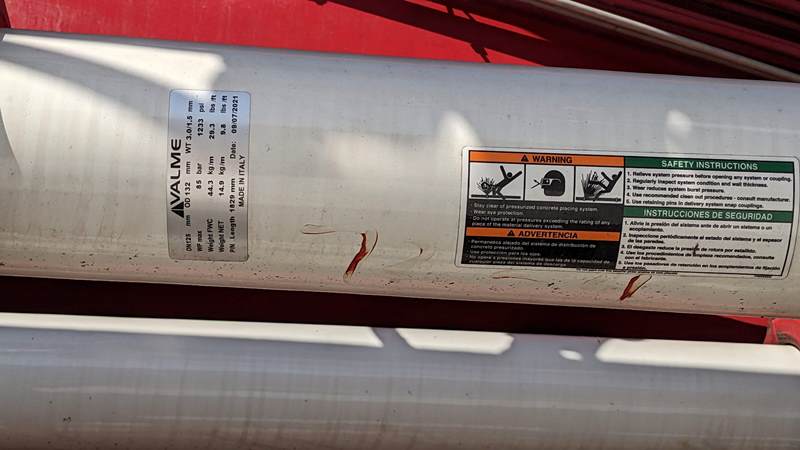

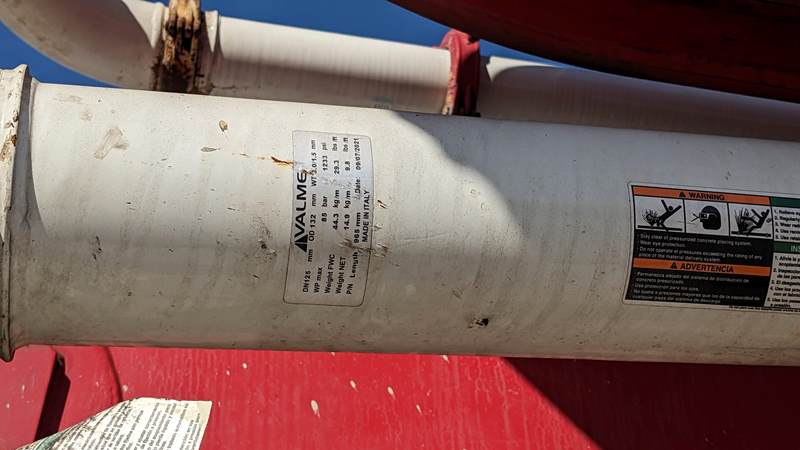

Pipe line

5" Metric

Pipe condition

Good

Paint

Red-fair

Last boom inspection

Will be current

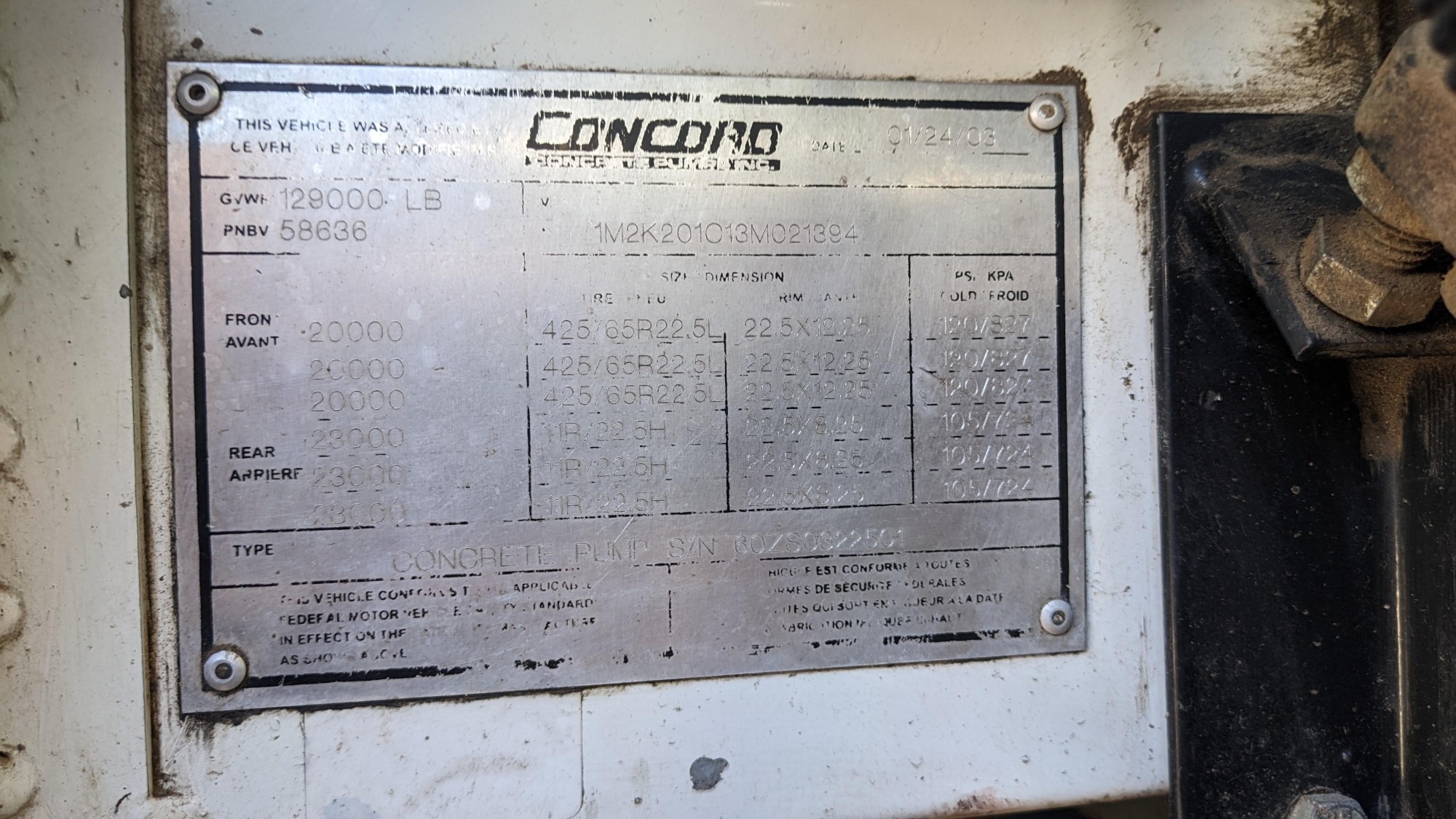

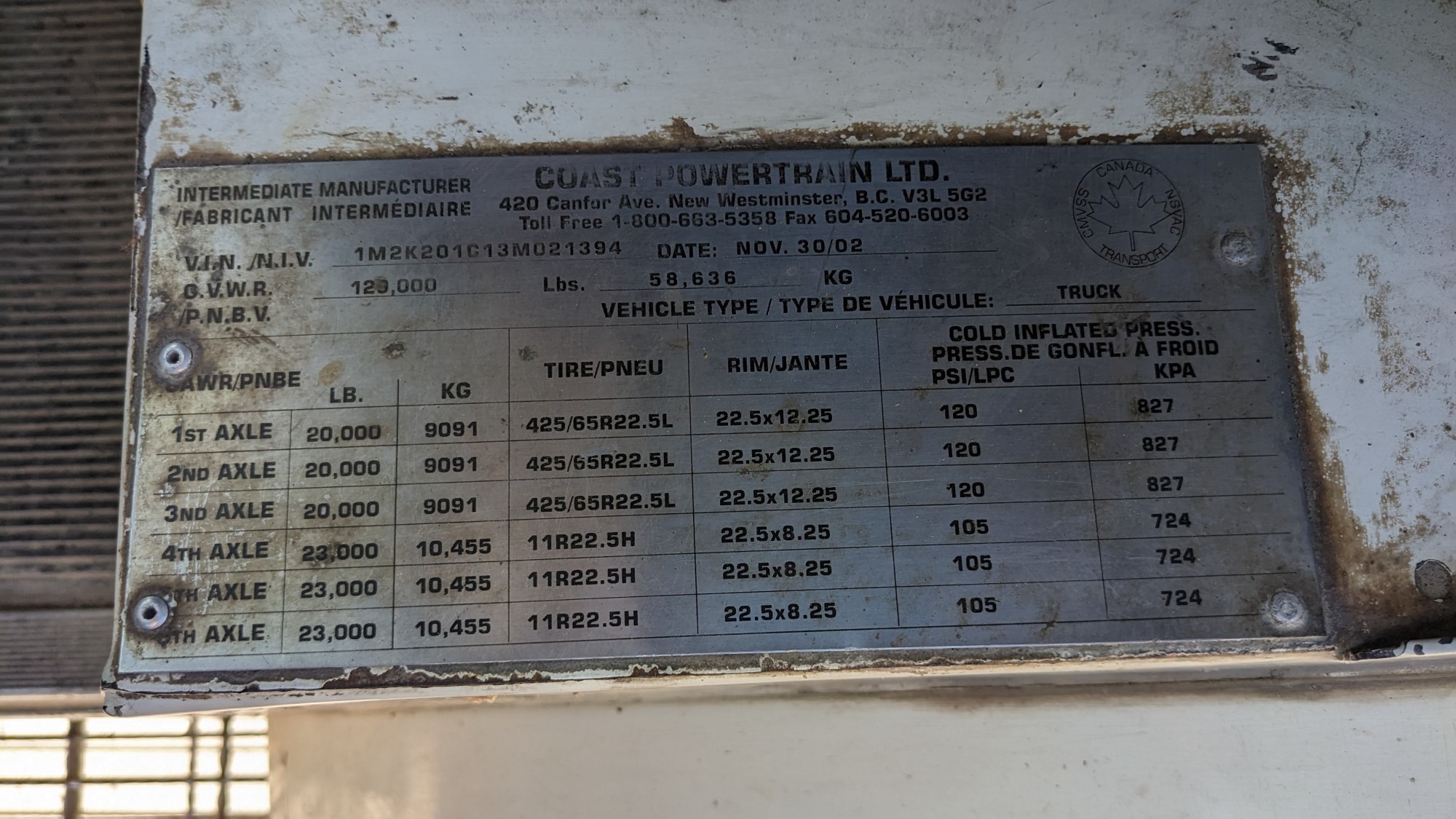

Truck vin

1M2K201C13M021394

Truck make

MACK

Truck model

MR 688S 12x6 Tri-steer Tri-drive

Truck year

2003

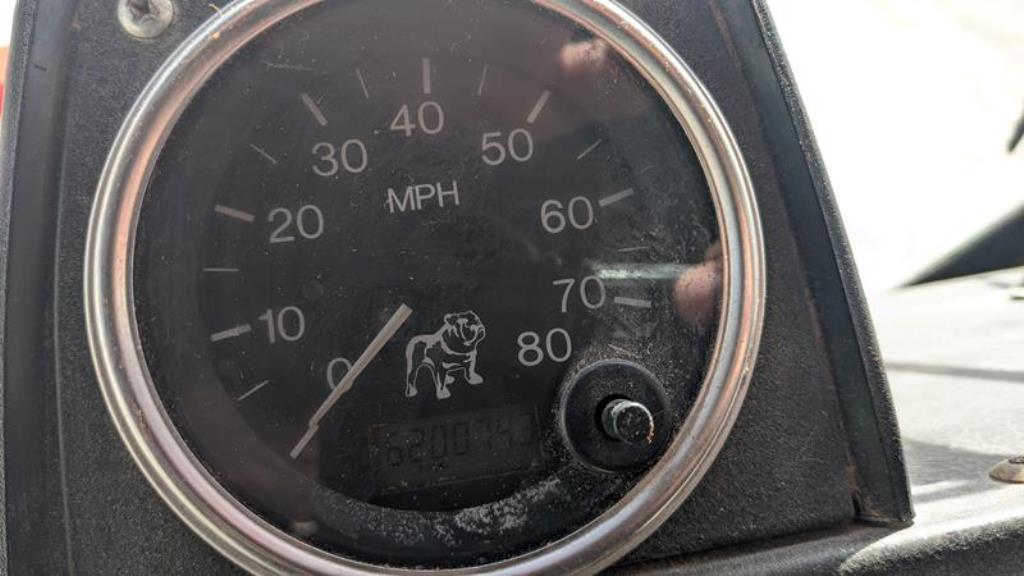

Miles

608357

Engine make / HP

Mack

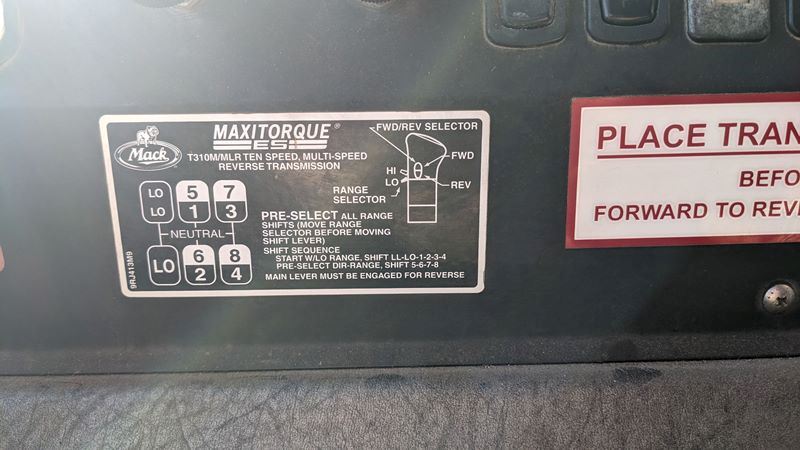

Transmission

Mack T310



Pump Specs:

Maximum output {fully variable}

300 cu yds/hr 225 M/hr

Concrete cylinder {hard chromed}

11"

Strokes per minute

29

Concrete pressure {rod side}

1,160 PSI

Concrete pressure {head side}

 1269 PSI

Hopper capacity

21 cu/ft

S-tube

9" x 7"

Hydraulic pump

Rexroth

Hydraulic system

Open loop

Max. aggregate size

2 1/2"



Boom Specifications:

5 section ZR-fold {vert. reach}

196' 9" {60 M}

Maximum horizontal reach

183' 7" {56 M}

Reach from front of truck

173' 11" {53 M}

Unfolding height

38' 9" {11.8 M}

Rotation

370 degree

Section articulation

92 / 180 / 230 / 180 / 245

Proportional Boom

Yes, corded back-up

Delivery line

5"M {125mm}



Standard Features

  • One cable remote control and one radio remote control
  • Clean-up water system with 210 gallon tank
  • 210 Diesel in leg
  • Hopper vibrator
  • Automatic lubrication system {hopper only}
  • Boom tip hose, 5" straight
  • Inspection visits welcome, pump water with snorkel
  • **Customer is responsible to check any/ all specifications

For more information contact:

Mark Irving 419-934-1682  mirving@irvingequipment.net
