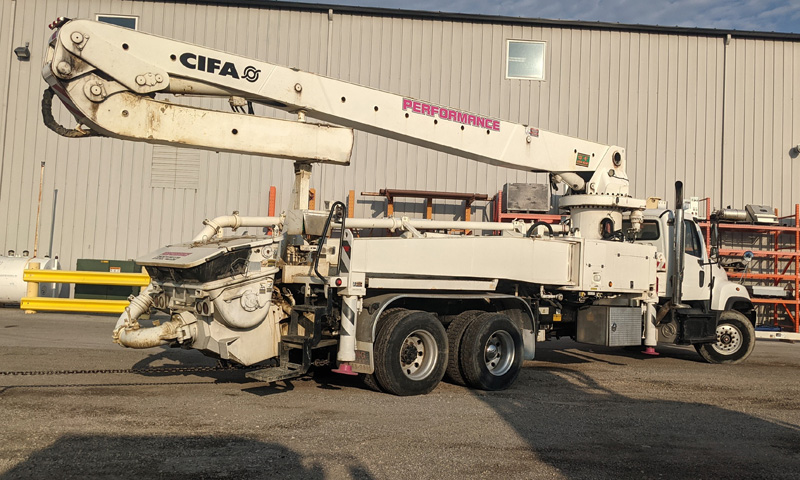

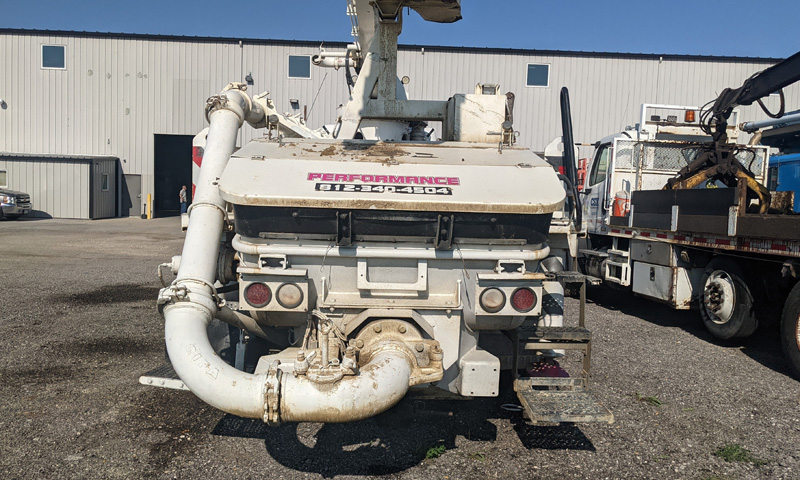

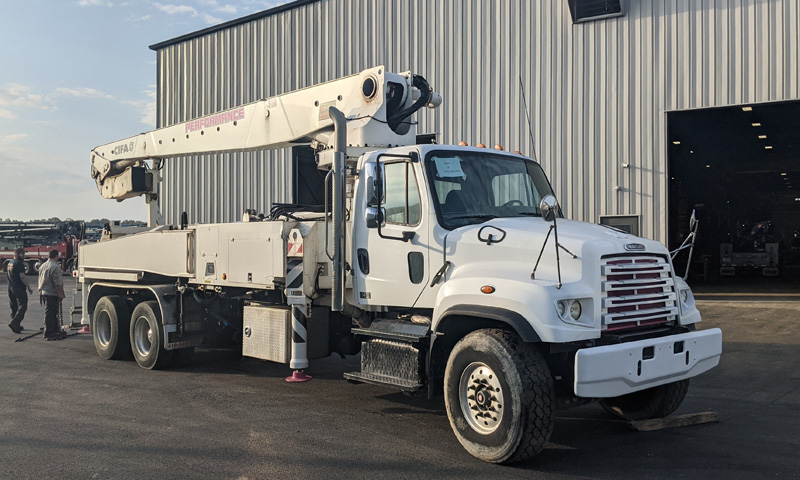

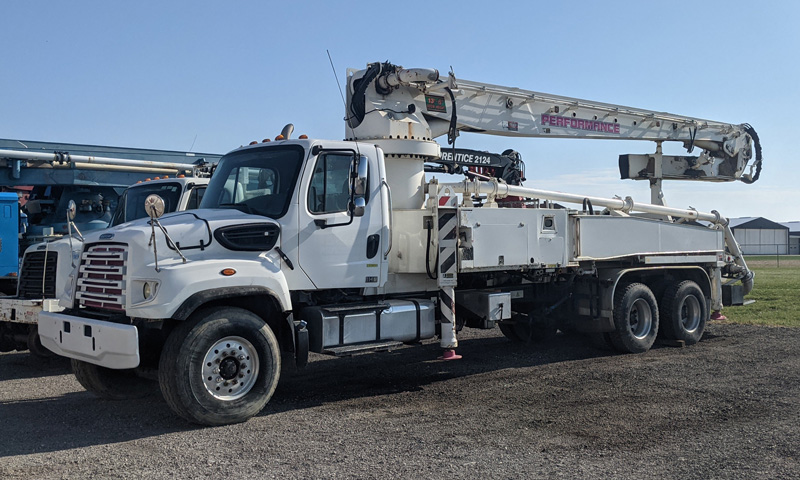

CIFA 38M Freightliner 1408 Pump Cell (2013/2012)
|
|
|
|
|
|
| Pump Make | CIFA 38 1408 Pump Cell, Line Pump (185 yard/hr) |
Pump year | 2013 |
Pump s/n | 17145 |
Pump hours | 925 |
Valve type | S-tube |
Remote | Yes |
Pipe line | Nope, booms off |
Pipe condition | Fair |
Paint | White |
Last boom inspection | No Booms, no outriggers |
Truck vin | 1FVHG3DV5CDBP3944 |
Truck make | FREIGHTLINER |
Truck model | SD114 6X4, 294" WB, 210" CA |
Truck year | 2012 |
Miles | 223,653 *adds while in PTO |
Engine make / HP | DD 13 450HP (new engine March 2022) |
Transmission | Eaton Fuller Auto Shift 10 Speed |
Pump Specs:
Maximum output {fully variable} | 185 cu yds/hr |
Concrete cylinder {hard chromed} | 9" |
Strokes per minute | 31 |
Concrete pressure {rod side} | 1,160 PSI |
Concrete pressure {head side} | PSI |
Hopper capacity | 21 cu/ft |
S-tube | 9" x 7" {220 mm x 180 mm}, rear housing |
Hydraulic pump | Rexroth |
Hydraulic system | Closed loop |
Max. aggregate size | 2 1/2" {65mm} |
Standard Features
- Hopper vibrator
- Automatic lubrication system {hopper only}
- Inspection visits welcome, pump water with snorkel
- **Customer is responsible to check any/ all specifications
For more information contact:
Mark Irving 419-934-1682 mirving@irvingequipment.net
